BExTBG05
Zone 1, 2, 21 & 22 Telephone Beacon

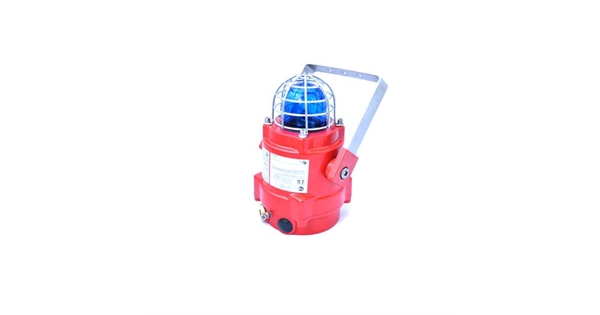

The flameproof BExTBG05 xenon beacons are suitable for Zone 1, 2, 21 & 22 applications.

The BExTBG05 5 Joule units are telephone initiated beacons. Their robust construction makes installation in the harshest of environments possible. Additional features include stainless steel lens guard and stainless steel mounting bracket as standard. The ring tone detect circuit senses the ringing voltage on the telephone line and switches the supply (115V ac or 230V ac)
to enable the beacon until the telephone is answered.



The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is phosphated and powder coated. All models have two M20 cable entries, large termination areas and an ingress protection of IP66/67.


Features:

• Xenon tubes mechanically secured against
 shock & vibration.
• Glass lens & Stainless Steel guard.
• Very large termination area.
• Ratchet adjustable stainless steel ‘U’ bracket.




Approvals:

• ATEX certificate:
 KEMA 00ATEX2006,
 EN 60079-0 : 2006,
 EN 60079-1 : 2007,
 EN 61241-0 : 2006,
 EN 61241-1 : 2004
• IECEx certificate:
  IECEx KEM 10.0002,
  IEC 60079-0 : 2004 (Ed4),
  IEC 60079-1 : 2007 (Ed6),
  IEC 61241-0 : 2004 (Ed1),
  IEC 61241-1 : 2004 (Ed1)
• GOST-R certificate:
  POCC GB.JB05.B02205
• Inmetro certificate:
 10-IEx-0010
