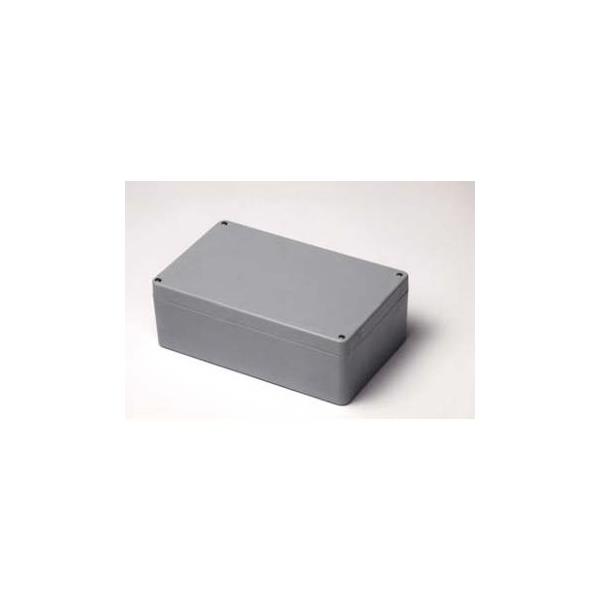

GRP BPG 13
Grey RAL7001





Size: 400x250x120mm (Finish: Standard)

IP Rating: IP66/67
Certification Level: ATEX and IECEX - Ex e Apparatus certified (Suitable for use in Zone 1/21 Areas).
Temperature Rating: T6/T5
Ambient Temperature (Degrees C): -50 to +40 and -50 to -55.





Entries:
Side A: M25 x 10
Side C: M25 x 10

Terminals (40 x SAK4/35)
Numbering (1--40)
Mounted on 1off TS32UNSL rail
Enclosure Earth Stud: 1 x EEAESM6BR Side B
Earth Symbol Label (1 x LABTEARTH)
Abtech Gel Label (1 x LABTGELCS)

Note 1: Unless specified otherwise all machining tolerance shall be class ‘m’ to BS EN 22768-1:1993, except for circular cable gland entries in junction boxes where the tolerance shall be +/- 0.25mm for hole sizes and +/- 2.0mm for hole positions. Where such entry positions are not specified they will be located at our discretion.
Note 2: Where the quotation is for hazardous area certified product please refer to the attached detailed specification sheet; in particular the permitted areas of use.
Note 3: Where applicable, stated delivery period commences upon receipt of final approved drawings.
Note 4: Unless otherwise stated, carriage and packing charges are based upon a single delivery. If you decide to receive goods on multiple deliveries we reserve the right to levy additional carriage charges.
Note 5: Whilst we make every effort to correctly interpret your requirements, please be aware that it is your responsibility to ensure that the quoted items are checked for suitability against your original enquiry. Orders subsequently received which reference this quotation, will be treated as an order for the items quoted above and not for the items detailed in your original enquiry.
