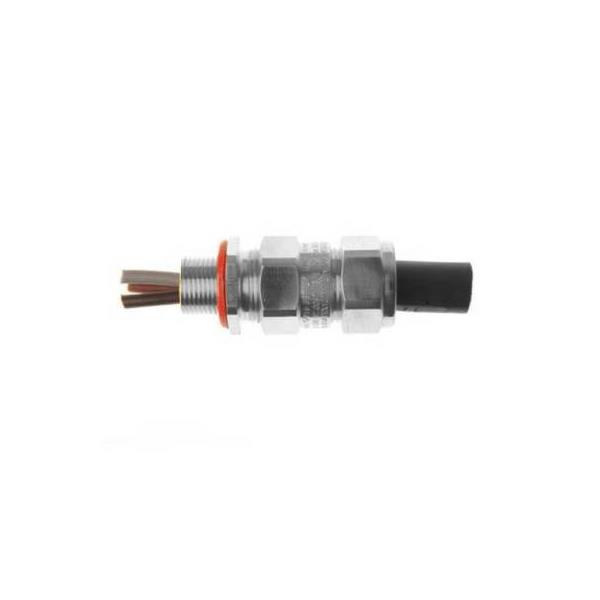

Cable Gland Type E
Double Compression Gland for Armoured Cable featuring Dedicated Armour Clamping
Ex d : Ex e : Ex nR : Ex ta : IP66 : IP68 Class I Div 2 : AEx e : AEx ta |
Product Description:
“E” type double compression glands are certified Flameproof Ex d, Increased Safety Ex e, Restricted Breathing Ex nR and Dust Protected Ex ta. They are suitable for use in Zone 1 and 2 for Gas Groups IIA, IIB and IIC and additionally for use in Zones 20, 21 and 22 for Dusts Groups IIIA, IIIB and IIIC. Also certified for Class I Zone 1 & Class I Div 2 installations for use with Marine Shipboard & Tray Cables under NEC & CEC. They provide a controlled Ex d & IP seal on the cable inner sheath, an environmental seal on the outer sheath and a detachable armour specific clamping system for wire (W), braid/tape (X) armoured cables.
The gland has been tested to IP66 and IP68 to 50 metres and is available with an IP O-ring seal on metric entry threads. The Integral Earth “IE” version allows the gland to be used with HV cables where the fault load is greater than 10.4kA and options are available for use with lead sheath, LSOH cables and extreme temperature applications.
Compliance Standard:
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 60079-31
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31 & IEC 60529
C22.2 (see certificate), CAN.CSA 60079-0/1/7
UL514B, UL1203, UL2225, UL50E, ANSI/UL 60079-0/7, ISA 60079-31
| Certification: | ATEX | II 1D 2G Ex d IIC Gb / Ex e IIC Gb |
| | Ex ta IIIC Da / II 3G Ex nR IIC Gc |
| IECEx | Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da |
| CEC | Class I Zone 1 Ex d IIC / Ex e II |
| | Class I Division 2, Groups A, B, C & D |
| | Class II Division 1, Groups E, F & G |
| | Class III, Enclosure Type 4X |
| NEC | Class I Zone 1 AEx e IIC Gb / |
| | Class II Zone 20 AEx ta IIIC Da |
| | Class II Division 1, Groups E, F & G |
| | Class III, Enclosure Type 4X |
| EAC | Exd IICU / Exe IIU / ExnR IIU |
| INMETRO | Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da |
| SAC | Ex d IIC / Ex e IIC |
| | UKRAINE | Ex d IIC X / Ex e II X |
| CCoE | Petroleum Rules 2002 (PESO) |
| ABS | Specified ABS Rule |
| LLOYD’S | Enclosure Systems (Part 1B) |
| RMRS | Part XI of RS Rules for the classification & |
| | construction of sea-going ships (ed. 2014) |
| | |
| Cert. No. | ATEX | SIRA 01ATEX1271X & SIRA 09ATEX1221X |
| IECEx | IECEx SIR 07.0097X |
| CEC | CSA 1356011 |
| NEC | CSA 2627370 |
| EAC | RU C-GB.??06.?.00098 |
| INMETRO | NCC 13.2186 X |
| SAC | NEPSI GYJ16.1400X |
| UKRAINE | UA.TR.047.C.0408-13 & 2937 |
| CCoE | PESO P365300/2 & P365300/13 |
| ABS | 14-LD463991-1-PDA |
| LLOYD’S | 10/00056(E1) |
| RMRS | 14.02755.315 |
| IP Rating: | IP66 & IP68 (50 metres - 7 days), Type 4X |
| Operating | |
| Temperature: | Neoprene Seals -35°C to +90°C |
| Silicone Seals -60°C to +180°C |
| Materials: | Aluminium, Brass or Stainless Steel |
| Plating: | Electroless Nickel |
Cable Gland Selection Table: See DataSheet
| Part Numbers: | E | 1 | W | B | * | F | * |
| | 2 | X | S | IE | | R |
| | 3 | | A | | | |
| | 4 | | | | | |
| Example Part Numbering: | E 1 W B F / NP / 20 / 050NPT |
| (See below for details) | |
| E | Gland featuring armour specific clamping |
| | |
| 1 | Neoprene Seal (1) - Silicone Seal (3) |
| | Neoprene/Lead (2) - Silicone/Lead (4) |
| | |
| W | SWA (W) / SWB or STA (X) |
| | |
| B | Aluminium (A) / Brass (B) / Stainless Steel (S) |
| | |
| IE | Integral Earth (see page 43) |
| | |
| | F | Multiple Certification |
| | |
| Options: | R | Reduced Bore Seal |
| Options: | C | PVC Shroud (C) - PCP Shroud (P) - |
| Options: | | LSOH Silicone Shroud (3) |
| Options: | K-V-H | Locknut, Earth Tag & Nylon (K), |
| Options: | | Fibre (V) or PTFE (H) IP Washer |
| Options: | S | Including Serrated Washer |
| Options: | 1 | Quantity per kit |
| Options: | NP | Nickel Plated |
| | | |
| 20 | Gland shell size |
| 050 NPT | 1/2”NPT Male Entry Thread |
Optional Accessories:
| Locknut: | Brass (A C B L N) |
| Brass Nickel Plated (A C B L N / N P) |
| Stainless Steel (A C S L N) |
| Aluminium (A C A L N) |
| |
| Earth tag: | Brass (A C B E T) |
| Brass Nickel Plated (A C B E T / N P) |
| Stainless Steel (A C S E T) |
| Aluminium (A C A E T) |
| |
| IP Washers: | Nylon (A C N S W) (-40° to +95°C) |
| Fibre (A C F S W) (-40° to +135°C) |
| PTFE (A C P S W) (-200° to +260°C) |
| |
| Serrated Washers: | Stainless Steel (A C S S W) |
| |
| Shrouds: | PVC (A C S P V C) (-25° to +70°C) |
| PCP (A C S P C P) (-30° to +100°C) |
| LSOH (A C S S I O) (-60° to +200°C) |
* For gland size 20 the silicone inner seal has a minimum diameter of 9.3 mm and NOT 6.7mm
Notes:
- Gland size does not necessarily equate to the entry thread size.
- Dimensions (A) & (B) may differ for glands with non metric entry threads. Please refer to our “Thread Reference Tables” for specific dimensions.
- Assembly instructions must be read prior to installation and adhered to in full.
- Peppers supplies cable glands with parallel entry threads that conform to the flameproof threaded joint requirements of IEC/EN 60079-1 and other equivalent standards. They usually incorporate a thread run out according to the available machining techniques and will not have a full form thread for the entire length. Peppers Cable Glands Limited will not be held responsible for clients’ installations where this has not been taken into account.
- When selecting IP Washer & Shroud material for use with glands, please be aware of the accessories temperature range to ensure they are suitable for the intended installation.
- Where approval in addition to ATEX, IECEx and CSA is required, this must be clearly requested at time of enquiry / order.
For further details, please refer to the attached Datasheet, Assembly Instructions (Manual), Certificates and other relevant documents.
