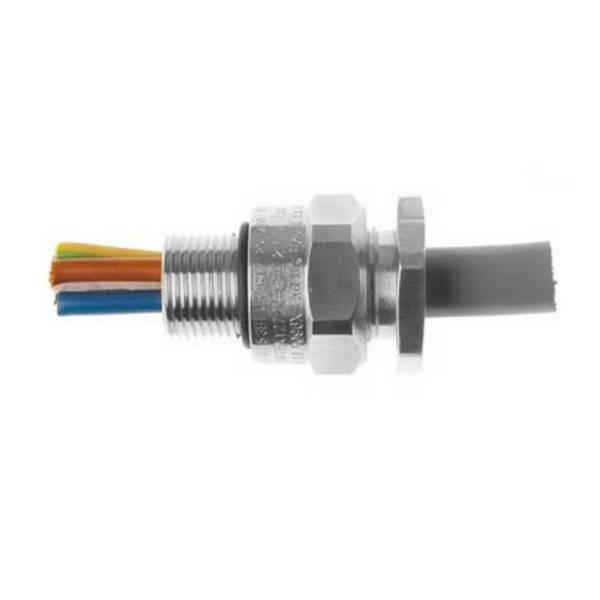

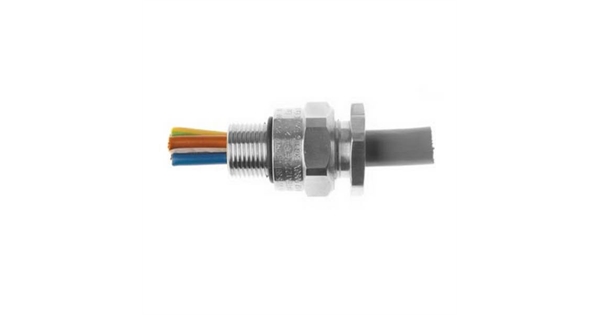

Ex Cable Gland A2LSF/20s/050NPT, SS316
IP66&IP68@50m EExdeIIC oø7.2-11.7mm
|
|
Cable Gland Type A - (Single seal Gland designed for use with Unarmoured Cable)
Ex d : Ex e : Ex nR : Ex ta : IP66 : IP68
Class I Div 2 : AEx e : AEx ta |
“A” type glands are certified Flameproof Ex d, Increased Safety Ex e, Restricted Breathing Ex nR and Dust Protected Ex ta. They are suitable for use in Zone 1 and 2 for Gas Groups IIA, IIB and IIC and additionally for use in Zones 20, 21 and 22 for Dust Groups IIIA, IIIB and IIIC. Commonly referred to as “stuffing glands” they provide a controlled pull resistant environmental displacement seal on the cable outer sheath, minimising damage to cables that exhibit “cold flow” characteristics.
The gland maintains IP66 & IP68 to 50 metres. It is supplied with an IP O-ring seal as standard on metric entry threads. Options are available for use with LSOH cables and extreme temperature applications.
| IP Rating: | IP66 & IP68 (50 metres - 7 Days), Type 4X |
| | |
| OperatingTemperature: | Neoprene Seals (A2....): -35ºC to +90ºC |
| Silicone Seals (A3....): -60ºC to +180ºC |
| | |
| Materials: | Brass, Stainless Steel or Aluminium |
| | |
| Plating: | Electroless Nickel |
| Compliance Standard: |
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 60079-31,
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31 & IEC 60529,
C22.2 (see certificate), CAN/CSA 60079-0/1/7, UL514B, UL1203,
UL2225, UL50E, ANSI/UL 60079-0/7, ISA 60079-31 |
| ATEX: | II 1D 2G Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da |
| II 3G Ex nR IIC Gc |
| IECEx: | Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da |
| CEC Canada: | Class I Zone 1 Ex d IIC / Ex e II |
| (except size 12) | Class I Division 2, Groups A, B, C & D |
| Class II Division 1, Groups E, F & G |
| Class III, Enclosure Type 4X |
| NEC USA: | Class I Zone 1 AEx e IIC Gb / |
| Class II Zone 20 AEx ta IIIC Da |
| Class I Division 2, Groups A, B, C & D |
| Class II Division 1, Groups E, F & G |
| Class III, Enclosure Type 4X |
| EAC: | Exd IICU / Exe IIU / ExnR IIU |
| INMETRO Brazil: | Ex d IIC Gb / Ex e IIC Gb / Ex ta IIIC Da / |
| | Ex nR IIC Gc |
| SAC China: | Ex d IIC / Ex e IIC |
| UKRAINE: | Ex d IIC X / Ex e II X |
| CCoE: | Petroleum Rules 2002 (PESO) |
| ABS: | Specified ABS Rules |
| LLOYD’S: | Enclosure Systems (Part 1B) |
| RMRS: | Part XI of RS Rules for the classification & |
| construction of sea-going ships (ed. 2014) |
| | |
| ATEX: | SIRA 01ATEX1272X & SIRA 09ATEX1221X |
| IECEx: | IECEx SIR 07.0096X |
| CEC Canada: | CSA 1356011 |
| NEC USA: | CSA 2627370 |
| EAC: | RU C-GB.??06.?.00098 |
| INMETRO Brazil: | NCC 13.2012 X |
| SAC China: | NEPSI GYJ16.1399X |
| UKRAINE: | UA.TR.047.C.0408-13 & 2937 |
| CCoE India: | PESO P365300/2 & P365300/5 |
| ABS: | 14-LD463991-1-PDA |
| LLOYD’S: | 10/00056(E1) |
| RMRS: | 14.02755.315 |
| | |
Cable Gland Selection Table:
| Gland | Entry | Thread | Cable | Nominal | Dim. | Weight |
| Size | Thread | Length | Acceptance | Protrusion | Across | Kgs. |
| Size | [B] | Range [D] | Length [L] | Corners [A] | |
| | | | | | | |
| 12 | M12 (x 1.5) | 16 | 0.9 - 6.0 | 33 | 21.0 | 0.038 |
| 12 | M16 (x 1.5) | 16 | 0.9 - 6.0 | 33 | 28.0 | 0.068 |
| 12 | M20 (x 1.5) | 16 | 0.9 - 6.0 | 33 | 28.0 | 0.082 |
| 16 | M16 (x 1.5) | 16 | 4.0 - 8.4 | 33 | 28.0 | 0.097 |
| 16 | M20 (x 1.5) | 16 | 4.0 - 8.4 | 33 | 28.0 | 0.104 |
| 20S | M20 (x 1.5) | 16 | 7.2 - 11.7 | 33 | 28.0 | 0.102 |
| 20 | M20 (x 1.5) | 16 | 9.4 - 14.0 | 33 | 33.0 | 0.127 |
| 25 | M25 (x 1.5) | 16 | 13.5 - 20.0 | 33 | 41.4 | 0.166 |
| 32 | M32 (x 1.5) | 16 | 19.5 - 26.3 | 33 | 50.6 | 0.244 |
| 40 | M40 (x 1.5) | 16 | 23.0 - 32.2 | 37 | 60.5 | 0.396 |
| 50S | M50 (x 1.5) | 16 | 28.1 - 38.2 | 37 | 71.5 | 0.558 |
| 50 | M50 (x 1.5) | 16 | 33.1 - 44.1 | 37 | 71.5 | 0.438 |
| 63S | M63 (x 1.5) | 19 | 39.2 - 50.1 | 37 | 88.0 | 0.832 |
| 63 | M63 (x 1.5) | 19 | 46.7 - 56.0 | 37 | 88.0 | 0.664 |
| 75S | M75 (x 1.5) | 19 | 52.1 - 62.0 | 37 | 99.0 | 0.924 |
| 75 | M75 (x 1.5) | 19 | 58.0 - 68.0 | 37 | 99.0 | 0.714 |
| 80 | M80 (x 2) | 25 | 62.2 - 72.0 | 50 | 115.2 | 1.514 |
| 85 | M85 (x 2) | 25 | 69.0 - 78.0 | 50 | 115.2 | 1.332 |
| 90 | M90 (x 2) | 25 | 74.0 - 84.0 | 50 | 125.7 | 1.622 |
| 100 | M100 (x 2) | 25 | 82.0 - 90.0 | 50 | 125.7 | 1.523 |
Alterativ Gland Size and Entry Thread Size in NPT:
| Gland Size | Entry Thread Size NPT |
| | |
| 12 | 0375 NPT (3/8”) or 050 NPT (1/2”) |
| 16 | 050 NPT (1/2”) or 075 NPT (3/4”) |
| 20S | 050 NPT (1/2”) or 075 NPT (3/4”) |
| 20 | 050 NPT (1/2”) or 075 NPT (3/4”) |
| 25 | 075 NPT (3/4”) or 100 NPT (1”) |
| 32 | 100 NPT (1”) or 125 NPT (1 1/4”) |
| 40 | 125 NPT (1 1/4”) or 150 NPT (1 1/2”) |
| 50S | 150 NPT (1 1/2”) or 200 NPT (2”) |
| 50 | 200 NPT (2”) |
| 63S | 200 NPT (2”) or 250 NPT (2 1/2”) |
| 63 | 250 NPT (2 1/2”) |
| 75S | 250 NPT (2 1/2”) or 300 NPT (3”) |
| 75 | 300 NPT (3”) |
| 80 | 300 NPT (3”) or 350 NPT (3 1/2”) |
| 85 | 300 NPT (3”) or 350 NPT (3 1/2”) |
| 90 | 350 NPT (3 1/2”) or 400 NPT (4”) |
| 100 | 350 NPT (3 1/2”) or 400 NPT (4”) |
| | 1 | | | |
| Part Numbers: | A | 2 | L | B | F |
| | 3 | | S | |
| | 4 | | A | |
| Example Part Numbering: | A 2 L B F / N P / 2 0 / M20 |
| (See below for details) | |
| A | Type of gland featuring controlled displacement |
| | sealing |
| 2 | (2) Neoprene Seals (-35ºC to +90ºC) |
| | (3) Silicone Seals (-60ºC to +180ºC) |
| | (1) Neoprene/Lead |
| | (4) Silicone/Lead |
| L | Peppers Standard Designation |
| B | (B) Brass |
| | (S) Stainless Steel |
| | (A) Aluminium |
| F | Multiple Certification |
| | | |
| Options: | C | (C) PVC Shroud |
| Options: | | (P) PCP Shroud |
| Options: | | (3) Silicone LSOH Shroud |
| Options: | K, V or H | (K) Locknut & Nylon, (V) Fibre IP Washer |
| | or (H) PTFE IP Washer |
| Options: | T | Including Earth Tag |
| Options: | S | Including Serrated Washer |
| Options: | 1 | Quantity per kit |
| Options: | NP | (NP) Nickel Plated or (ZP) Zinc Plated |
| | | |
| 20 | Gland shell size |
| M20 | M20 x 1.5mm Male Entry Thread |
Optional Accessories:
| Locknut: | Brass (A C B L N) |
| Brass Nickel Plated (A C B L N / N P) |
| Stainless Steel (A C S L N) |
| Aluminium (A C A L N) |
| |
| Earth tag: | Brass (A C B E T) |
| Brass Nickel Plated (A C B E T / N P) |
| Stainless Steel (A C S E T) |
| Aluminium (A C A E T) |
| |
| IP Washers: | Nylon (A C N S W) (-40° to +95°C) |
| Fibre (A C F S W) (-40° to +135°C) |
| PTFE (A C P S W) (-200° to +260°C) |
| (see note 3 below) |
| |
| Serrated Washers: | Stainless Steel (A C S S W) |
| |
| Shrouds: | PVC (A C S P V C) (-25° to +70°C) |
| PCP (A C S P C P) (-30° to +100°C) |
| LSOH (A C S S I O) (-60° to +200°C) |
Notes:
| * | Gland size does not necessarily equate to the entry thread size. |
| * | The IP O-ring seal is only available on metric entry threads. |
| IP washers can be supplied for tapered entry threads. |
| * | Dimensions (A) & (B) may differ for glands with non metric entry |
| threads. Please refer to our “Thread Reference Tables” for specific |
| dimensions. |
| * | Assembly instructions must be read prior to installation and adhered |
| to in full. |
| * | Peppers supplies cable glands with parallel entry threads that |
| conform to the flameproof threaded joint requirements of IEC/EN |
| 60079-1 and other equivalent standards. |
| They usually incorporate a thread run out according to the available |
| machining techniques and will not have a full form thread for the |
| entire length. Peppers Cable Glands Limited will not be held |
| responsible for clients’ installations where this has not been taken |
| into account. |
| * | When selecting IP Washer & Shroud material for use with glands, |
| please be aware of the accessories temperature range to ensure they |
| are suitable for the intended installation. |
| * | Where approval in addition to ATEX, IECEx and CSA is required, |
| this must be clearly requested at time of enquiry / order. |
For further details, please refer to the attached Datasheet, Assembly Instructions (Manual), Certificates and other relevant documents.
