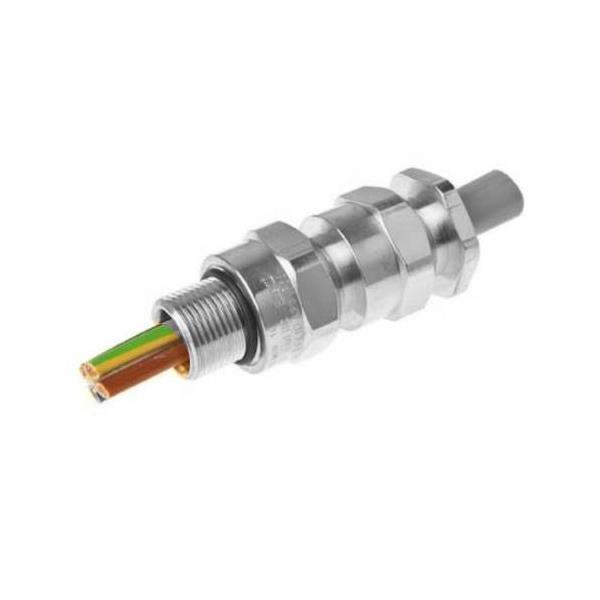

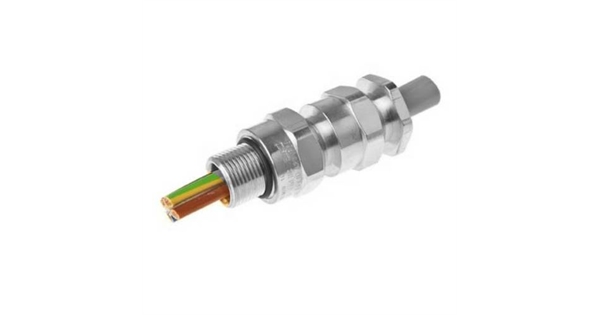

Cable Gland Type A2LDSF (Double Compression for any Cable)



"A*LDS" type glands, certified Flameproof Ex d, Increased Safety Ex e & Restricted Breathing Ex nR are suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups hA, lIB and llC. Commonly referred to as"double seal stuffing glands" they provide two controlled pull resistant environmental displacement seals on the cable outer sheath, minimising damage to cables that exhibit"cold flow" characteristics. The gland maintains IP66 & 1P68 to 25 metres and is deluge proof without the use of an additional seal or deluge boot. It is supplied with an IP 0-ring seal as standard on metric entry threads. Options are available for use with LSOH cables and extreme temperature applications.



Compliance Standard: EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-1, EN 61241-0, EN 61241-1; IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1 & IEC 60529
Certification:
ATEX: II2 CID ExdIIC/Exell/ExtDA21/113GDExnRII
IECEx: ExdllC/Exell/ExtDA21
GOST-R: ExdIICU/ExellU
CSA: ExdllC/Ex ell Class I Zone 1; Class I Division 2, Groups A, B, C & D; Class II Division 2, Groups E, F & G; Class Ill, Enclosure Types 3,4 & 4X
NEPSI: ExdllC/Exell
INMETRO: BR - tx d IIC/Exe II /ExnR II /ExtDA21
ABS: 1-1-4/7.7,4.8-3/1.7,4-8-3/13 and 4-8-4/27.5; MODU Rules 4-3-3/9
LLOYD'S: Enclosure Systems (Part 1 B)
RMRS: Part XI of Rules for sea-going ships (ed.2008)



Certificate No.
ATEX: SIRA 01 ATEX1 272X & SIRA 09ATEX1 221 X
IECEx: SIR 07.0096X
GOST-R POCCGB.1506.B00853
CSA: CSA 1356011
NEPSI: 0YJ06186X
INMETRO: NCC 5879/09 X
ABS: 09-LD463991-PDA
LLOYD'S: 10/00056
RMRS: 09.00784.011



IP Rating: 1P66 & lP68 (25 metres -30 minutes), NEMA 4X& DTSO1 1991
Operating Temperature:
Neoprene Seals -20°Cto+85°C
Silicone Seals -60°Cto+180C
Materials: Brass, Stainless Steel or Aluminium
Plating: Nickel - Zinc



Notes:
* Gland size does not necessarily equate to the entry thread size. Gland size 16 is also available with an Ml 6 xl .5 entry thread.
* The IP 0-ring seal is only available on metric entry threads. IP washers can be supplied for tapered entry threads.
* Please ensure that the IP 0-ring is not used in conjunction with a flat IP washer.
* Dimensions (A) & (B) may differ for glandswith non metric entry threads. Please refer to our"Thread Reference Tables"for specific dimensions.
* Where glands are fitted into non-metallicEx e enclosures they must be included within the earth drcuit of the system
* The user should seek expert advice if intending to combine flammable and combustible dust in one environment/installation.
* Assembly instructions must be read prior to installation and adhered to in full.
* Peppers supplies cable glands with parallel entry threads that conform to the flameproof threaded joint requirements of IEC/EN 60079-1 and other equivalent standards.They usually incorporate a thread run out according to the available machining techniques and will not have a full form thread for the entire length. Peppers will not be held responsible for dients'installations where this has not been taken into account
* To maintain the specified IF' rating, clearance holes must be in accordance with EN 50262 Table 1 and the entry device should be suitably secured.
* All gland kits supplied with silicone seals will include a PTFE IP washer in order to maintain the temperature range.
