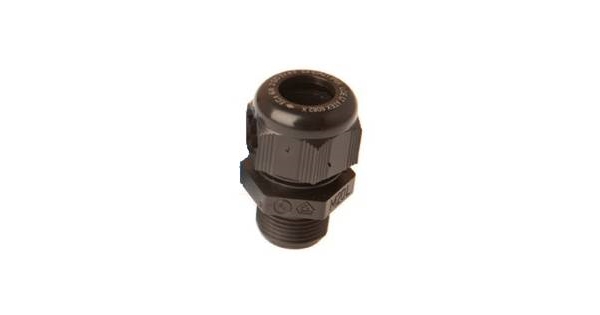

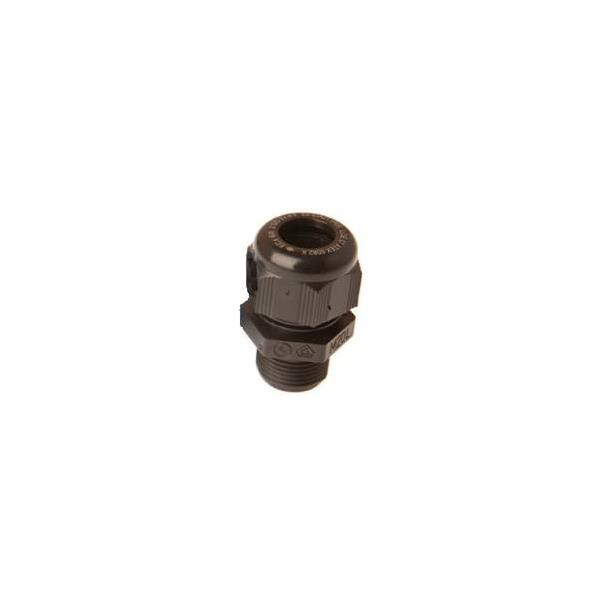

ATEX Cable Gland PF8022000E M20
EExeII IP66 & IP68 BlackNylon oø10-14mm
|
|
Cable Gland Type PF - (Single Compression Nylon Gland)
Peppers “PF” type glands, certified Increased Safety Ex e are suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Group II. They are manufactured from polyamide and provide a controlled pull resistant displacement seal on the cable outer sheath providing both Ex e & IP protection. The gland has been tested to IP66 & IP68 to 50 metres and is fully compliant with the Ex e standard with no reduced impact restriction. Available in black or blue, in a range of thread forms complete with an IP flat washer on metric entry threads.
| Operating Temperature: | M16-M63: -35°C to +95°C ° |
| M12: -20°C to +80°C |
| Materials: | Polyamide |
| IP Rating: | IP66 & IP68 (50 metres - 30 minutes) |
| Impact Resistance: | 7Nm |
| Optional Accessories: | Nylon Locknut / IP Washers |
| Options: | Colour: Black / Blue |
| Industrial Non-Ex version:
Omit “E” from part number |

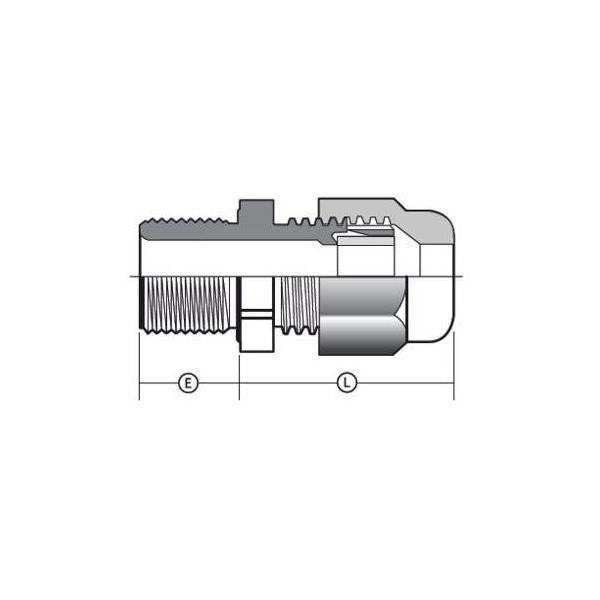

Gland
Size | Entry
Thread Size | Nominal
Protrusion
[L] | Cable
Sealing Range | ISO
Thread
Length
[E] | Part Number |
12 | M12 x 1.5 | 23.0 | 4.0 - 6.5 | 8.0 | PF8021200E |
16 | M16 x 1.5 | 28.0 | 5.0 - 8.0 | 10.0 | PF8021650E |
16 | M16 x 1.5 | 28.0 | 5.0 - 10.0 | 10.0 | PF8021600E |
20 | M20 x 1.5 | 28.0 | 7.0 - 12.0 | 10.0 | PF8022050E |
20 | M20 x 1.5 | 28.0 | 10.0 - 14.0 | 10.0 | PF8022000E |
25 | M25 x 1.5 | 36.0 | 10.0 - 14.0 | 10.0 | PF8022550E |
25 | M25 x 1.5 | 36.0 | 12.0 - 18.0 | 10.0 | PF8022500E |
32 | M32 x 1.5 | 42.0 | 16.0 - 25.0 | 10.0 | PF8023200E |
40 | M40 x 1.5 | 52.5 | 22.0 - 32.0 | 10.0 | PF8024000E |
50 | M50 x 1.5 | 54.5 | 28.0 - 38.5 | 12.0 | PF8025000E |
63 | M63 x 1.5 | 55.5 | 40.0 - 48.0 | 12.0 | PF8026300E |
Compliance Standard: EN 60079-0, EN 60079-7, EN 61241-0, EN 61241-1
IEC 60079-0, IEC 60079-7, IEC 61241-0, IEC 61241-1 & IEC 60529
Certification:
ATEX: II 2 GD Ex e II / Ex tD A21
IECEx: Ex e II / Ex tD A21
GOST-R: Ex e IIU
UL: ANSI/UL514B
CSA: CAN/CSA C22.2
VDE: DIN EN 50262 / VDE 0619
LLOYD’S: Enclosure Systems (Part 1B)
Certificate No.:
ATEX: LCIE 07ATEX6082X/02
IECEx: LCI 10.0008X
GOST: POCC FR M14.B00153
UL: E306665
CSA: E306665
VDE: 131210
LLOYD’S: 10/00056
Notes:
* The user should seek expert advice if intending to combine flammable and combustible dust in one environment/installation.
* Assembly instructions must be read prior to installation and adhered to in full.
* If used in a threaded entry, NPT versions may protrude more than “L” length due to engagement of tapered threads.
* Industrial Non-Ex versions are not supplied with IP thread sealing washer.
* Industrial Non-Ex versions are only available in Black.
For further details, please see DataSheet.
