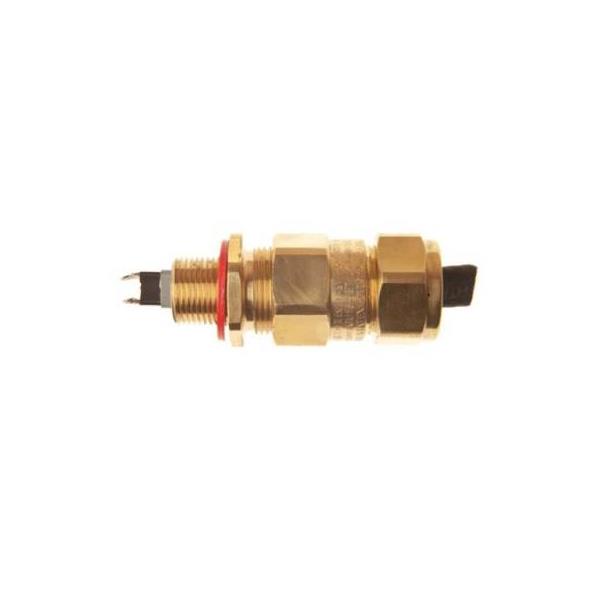

Cable Gland Type E8XBF - for Armoured Flat Cables
E8 & A8 type glands, certified Flameproof Ex d, Increased Safety Ex e & Restricted Breathing Ex nR are suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC. Developed for flat cables they provide controlled Ex d, IP sealing and have been tested to IP66 and IP68 to 25 metres. The A8 version is designed to accommodate unarmoured cables whilst the E8 features an environmental seal on the outer sheath and a detachable armour specific clamping system.
Compliance Standard:
EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-15, EN 61241-0, EN 61241-1
IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-0, IEC 61241-1 & IEC 60529
Certification:
ATEX: II 2 GD Ex d IIC / Ex e II / Ex tD A21 / II 3 G Ex nR II
IECEx: Ex d IIC / Ex e II / Ex tD A21
GOST-R: Ex d IICU / Ex e IIU
NEPSI: Ex d IIC / Ex e II
INMETRO: BR - Ex d IIC / Ex e II / Ex nR II / Ex tD A21
ABS: 1-1-4/7.7, 4.8-3/1.7, 4-8-3/13 and 4-8-4/27.5 MODU Rules 4-3-3/9
LLOYD’S: Enclosure Systems (Part 1B)
RMRS: Part XI of Rules for sea-going ships (ed.2008)
Certificate No.
ATEX: SIRA 01ATEX1270X & SIRA 09ATEX1221X
IECEx: SIR 05.0020X
GOST-R: ???? GB.??06.?00853
NEPSI: GYJ06185X
INMETRO: NCC 5880/09 X
ABS: 09-LD463991-PDA
LLOYD’S: 10/00056
RMRS: 09.00784.011
IP Rating: IP66 & IP68 (25 metres - 30 minutes)
Operating Temperature: Silicone Seals -60ºC to +180ºC
Materials: Brass, Stainless Steel
Plating: Nickel - Zinc
Example Part Numbering:
(See below for details)
E8XBF/20R/M20 (for Armoured Cables)
A8BF/20/M20 (for Unarmoured Cables)
E: Armoured Cables (E) - Unarmoured Cables (A)
8: Silicone for flat cables (8)
X: Braid Armour (X)
B: Brass (B) / Stainless Steel (S)
F: Multiple Certification
NP: Nickel Plated (NP) - Zinc Plated (ZP)
20R: Gland shell size
M20: M20 x 1.5 Entry Thread
Optional Accessories:
Locknut: Brass (ACBLN) / Stainless Steel (ACSLN)
Earth tag: Brass (ACBET) / Stainless Steel (ACSET)
IP Washers: Nylon (ACNSW) / Fibre (ACFSW)
Serrated Washers: Stainless Steel (ACSSW)
Notes:
* Gland size does not necessarily equate to the entry thread size.
* Dimensions (A) & (B) may differ for glands with non metric entry threads. Please refer to our “Thread Reference Tables” for specific dimensions.
* Where glands are fitted into non-metallic Ex e enclosures they must be included within the earth circuit of the system.
* The user should seek expert advice if intending to combine flammable and combustible dust in one environment/installation.
* Assembly instructions must be read prior to installation and adhered to in full.
* Peppers supplies cable glands with parallel entry threads that conform to the flameproof threaded joint requirements of IEC/EN 60079-1 and other equivalent standards. They usually incorporate a thread run out according to the available machining techniques and will not have a full form thread for the entire length. Peppers will not be held responsible for clients’ installations where this has not been taken into account.
* To maintain the specified IP rating, clearance holes must be in accordance with EN 50262 Table 1 and the entry device should be suitably secured.
