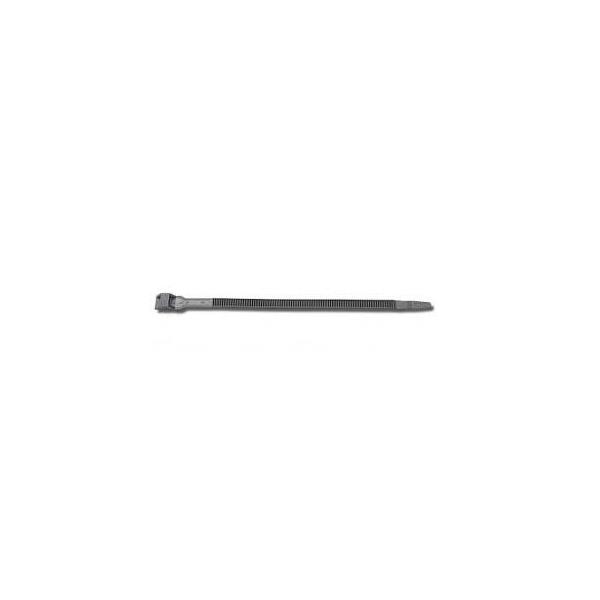

BELTURING PLUS CABLE TIES Poyamide 12



APPLICATIONS:
• Electrical installations.
• Industrial wiring.
• Automotive.
• Panel building.
• Special applications.
• Outdoor uses.



CHARACTERISTICS:
The flat head, the high surface and the closing system with external teeth of these Cable Ties make them particularly suitable for applications on suspended lines, avoiding problems of insulation damage.



BENEFITS:
• Highly withstands climatic changes, also in sea-areas.
• High UV resistance.
• Halogen-free resins.
• High resistance to bases, oils, greases, oil derivatives, chloride solvents.



CHARACTERISTICS OF RAW MATERIAL:



Humidity absorption: <1%
Working temperature da -45°C a +85°C
Tightening temperature da -30°C a +60°C
Max admissible point +120°C for short time
Limit Oxygen Index (LOI): 22% (EN ISO 4589-1and ASTM D 2863-00)
Flammability rating: UL 94 class HB.
Halogen-free resins.
According to EN 50 146 and EDF HN 33 S 62



• Limited resistance to acids.
• Not resistant to phenols.



EC DIRECTIVES:
The raw material used to produce these cable ties is compliant with EC Directives:
2000/53/EC (ELV)
2002/95/EC (RoHS)
2002/96/EC (WEEE)
2003/11/EC
