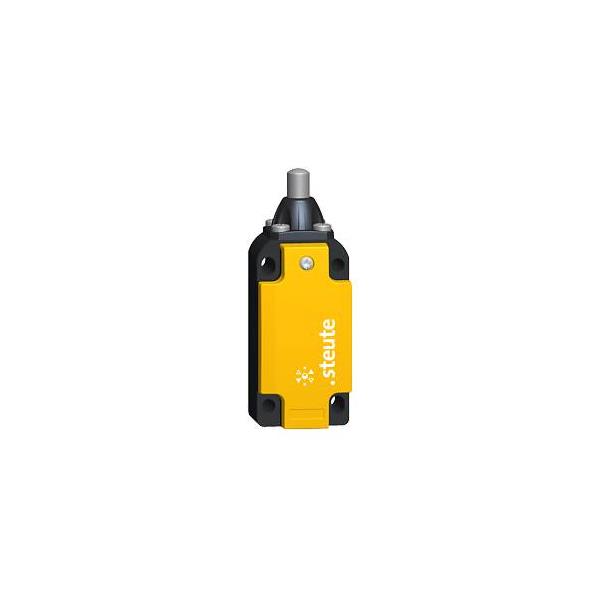

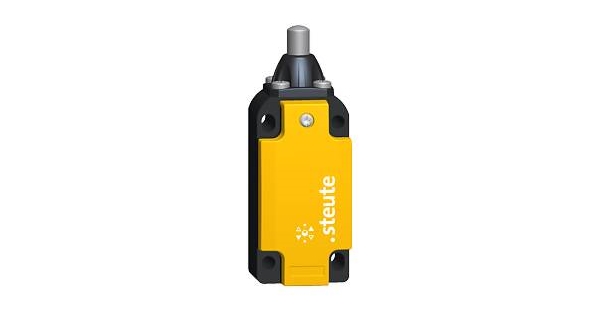

Position switch ES 98 / EM 98 -40°C IP66 Extreme
Features/Options
•Cold-resistant down to -40°C
•High degree of protection IP 66
•Metal enclosure
•Design according to EN 50041
•ES 98: Slow action , change-over contact or 2 NC/1 NO contact with double break
•EM 98: Snap action, 2 NC/1 NO contact with double break
Technical data
Standards: EN 60947-5-1
Design: DIN EN 50 041
Enclosure: zinc die-cast, enamel finish
Degree of protection: IP 66/67 to IEC/EN 60529
Contact material: silver
Switching system: slow or snap action, positive break NC contacts to EN 60947-5-1
Switching elements: change-over contact or 2 NC/1 NO contact with double break Zb, galvanically separated contact bridges
Connection: plug-in connector
Cable section: 2 contacts: max. 2.5 mm², 3 contacts: max. 1.5 mm² (incl. conductor ferrules)
Cable entry: 1 x M20 x 1.5
B10d (10 % Load): 2 million
TM: max. 20 years
Uimp: 4 kV
Ui: 400 V
Ithe: 2 contacts: 6 A, 3 contacts: 1.5 A
Ie/Ue: 2 contacts: 6 A/250 VAC; 0.25 A/230 VDC, 3 contacts: 1.5 A/230 VAC; 0.27 A/250 VDC
Utilisation category: AC-15; DC-13
Max. fuse rating: 2 contacts: 6 A gG/gN fuse, 3 contacts: 1.5 A gG/gN fuse
Mechanical life: > 1 million operations
Frequency of operation: 1800/h
Ambient temperature: –40 °C … +60 °C
