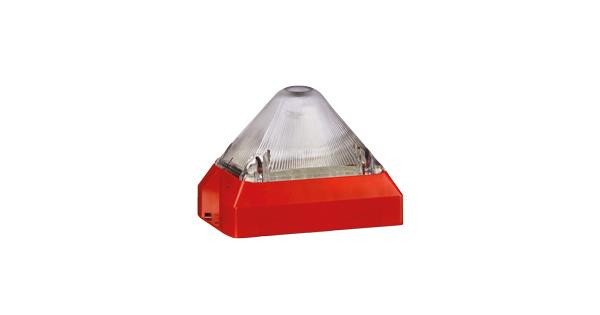

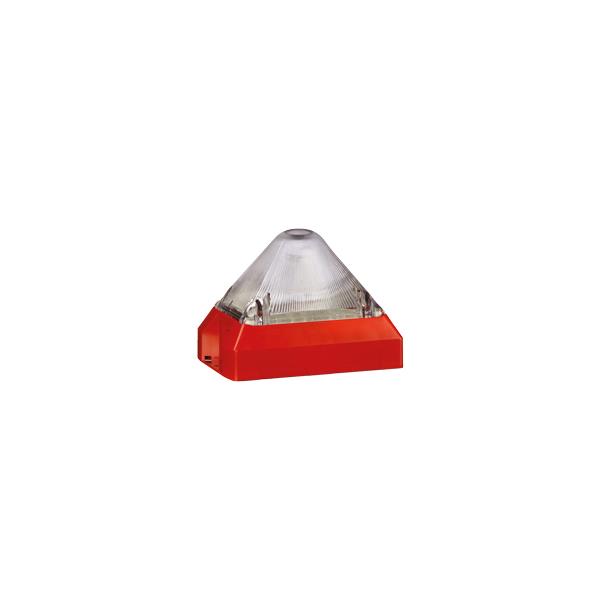

XenonStrobePYRA PY X-M-10-R 230vAC Clear
10J 0,1-1Hz IP66 187-255vAC [red]
|
|
PYRA Xenon Strobe PY X-M-10
• EN 54-23 approved (applies to devices with Clear or Red lens in 24vDC(10–60VDC))
• 10 Joules
• Safe – an incorrect installation is virtually impossible
• Easy – significantly shorter assembly and installation times
• Economical – largest possible signaling range due to effective XENON technology
• Installation options with external lugs or internal holes
• Choice of four different flash rates via DIP switch
• Suitable for panel mounting
• Electronic constant current regulation at 24VDC devices to avoid load fluctuations
• Integrated inrush current limitation and undervoltage detection (option)
• Providing full synchronization on multi-flashing light systems
Electrical data:
| Rated voltage: | 230 vAC | 115 vAC | 24 vDC |
| Rated frequency: | 50 / 60 Hz | 50 / 60 Hz | |
| Operating range: | 187 – 255v | 90 – 135v | 10 – 60v |
| Nominal current @ 1 Hz: | 150 mA | 240 mA | 540 mA @ 24v |
Mechanical data:
| Flash rate: | 0.1 / 0.5 / 0.75 / 1 Hz (DIP switch) |
| Flash energy: | 10 J |
| Light intensity (DIN 5037): | 118 cd (*) |
| Lens colours: | red, amber, yellow, green, blue, white, clear |
| Operating temperature: | - 40 °C ... + 55 °C |
| Storage temperature: | - 40 °C ... + 70 °C |
| Relative humidity: | max. 90% |
| IP (acc. to EN 60529): | IP 66 |
| Protection class: | II |
| Duty cycle: | 100% |
| Service life of the flash tube: | light emission still 70% after 8 mill. flashes |
| Lens material: | polycarbonate (PC) |
| Housing material: | PC / ABS |
| Housing colours: | RAL 3000 (flame red)
RAL 7035 (light grey) |
| Cable entry: | 2 x M20 on side, 2 x M20 on bottom |
| Integrated seal with cable entry: | 6 – 13 mm |
| Connecting terminal: | 2.5 mm2 fine wire, AWG 16 |
| Weight: | 440 g |
*) With a clear lens
Ordering details:
Article numbers PY X-M-10 – housing red:
Rated voltage:
Lens colour: | 230 vAC | 115 vAC | 24 vDC |
| Clear | 2155 110 1000 | 2155 115 1000 | 2155 181 1000 ¹ |
| Yellow | 2155 110 3000 | 2155 115 3000 | 2155 181 3000 |
| Red | 2155 110 5000 | 2155 115 5000 | 2155 181 5000 ¹ |

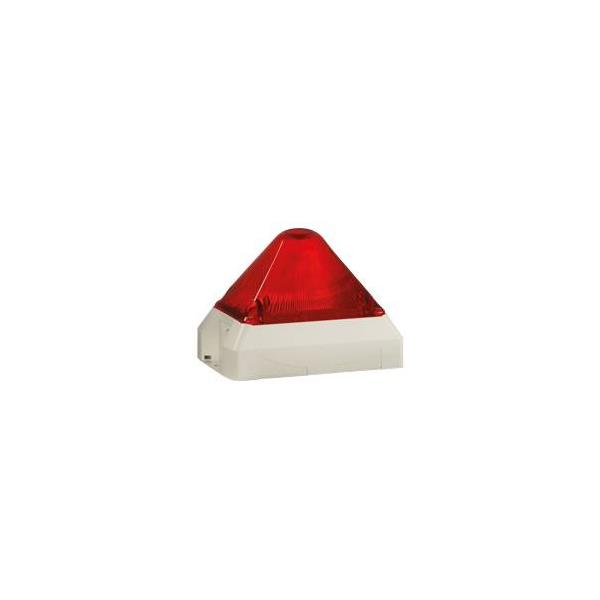

Article numbers PY X-M-10 – housing
grey: Rated voltage:
Lens colour: | 230 vAC | 115 vAC | 24 vDC |
| Clear: | 2155 110 1055 | 2155 115 1055 | 2155 181 1055 ¹ |
| Yellow: | 2155 110 3055 | 2155 115 3055 | 2155 181 3055 |
| Red: | 2155 110 5055 | 2155 115 5055 | 2155 181 5055 ¹ |
*¹) Version with EN 54-23 approval.
Article numbers for other colours and voltages on request
Conformity to standards:
The visual characteristics of flashing lights conform to the European standard DIN EN 842: “Machine safety - visual alarm signals“.
Requirements contained in the DIN EN 981 standard: “Machine safety - system of acoustic and visual alarm and information signals“, can be fulfilled.
The colours ‘red’ for the emergency signal and ‘yellow’ for the warning signal conform to the requirements of IEC 73 / DIN EN 60073 / VDE 0199:
“Coding of display devices and control elements using colours and supplementary means“.
References to visual alarm devices can be found in the following standards:
EN 60825-1 Radiation safety of laser devices, identical to IEC 825 and DIN-VDE 0837
DIN EN 54 Fire alarm systems
DIN 54113-2 Radiation protection regulations for the technical operation of X-ray equipment up to 500 kV
