Ex XenonStr. CWB-ATEX 12-48vDC 1:RED

5J IP66 EExdeIICT5/T6 12-48vDC/24-42vAC

Varenr:
EXCWBATEX024.1
EXCWBATEX024.1 Pfannenberg 31006905000 Ex XenonStr. CWB-ATEX 12-48vDC 1:RED 5J IP66 EExdeIICT5/T6 12-48vDC/24-42vAC
EXCWBATEX024.1 Pfannenberg 31006905000 Ex XenonStr. CWB-ATEX 12-48vDC 1:RED 5J IP66 EExdeIICT5/T6 12-48vDC/24-42vAC

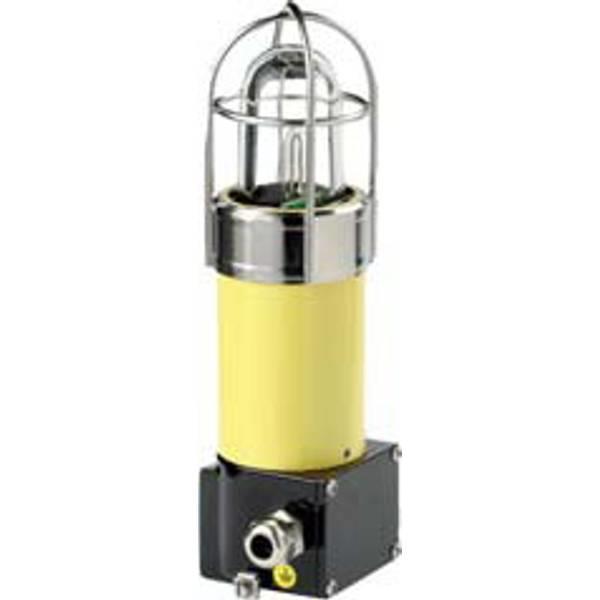

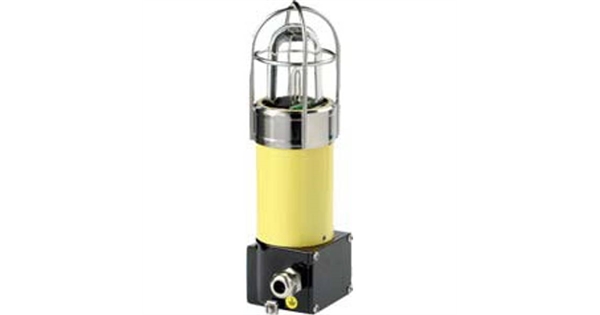

CWB-ATEX   Ex Xenon Beacon 5 Joule



    The flashing lights from the CWB-ATEX series are explosionprotected equipment and serve as visual alarms in potentially explosive workplaces in Zones 1, 2, 21 and 22

    •  Housing made of aluminium, therefore usable in all chemical and petrochemical plants as well as offshore plants
    •  High protection system and stable mechanical construction allow use under the toughest operating conditions
    •  Various mounting brackets and a protective cage are available as accessories



    Electrical data:

    Rated voltage:

    230
    vAC

    110-127
    vAC

    24-42
    vAC

    60-80
    vDC

    12-48
    vDC

    24
    vDC





    Rated frequency:

    50/60Hz

    50/60Hz

    50/60Hz





    Operating range:

    ± 10%

    ± 10%

    ± 10%

    ± 10%

    ± 10%

    ± 10%





    Nominal current:

    0.08 A

    0.11 A

    0.5-0.3 A

    0.11-0.13 A

    0.5-0.3 A

    0.4 A





    Mechanical data:



    Type of protection:

    ’d’ flame proof enclosure for light housing
    ’e’ enhanced safety for terminal box





    Explosion protection:


    II 2 G Ex d e IIC T6 Gb
    II 2 G Ex d e IIC T5 Gb
    II 2 D Ex tb IIIC T85°C Db IP66 (T6)
    II 2 D Ex tb IIIC T100°C Db IP66 (T5)





    Category (area of use):

    2G (Zone 1) / 3G (Zone 2)
    2D (Zone 21) / 3D (Zone 22)





    Certificate of conformity:LCIE 02 ATEX 6113
    Testing body:LCIE
    Flash energy:5 Joule
    Flash rate:approx. 1 Hz
    Lens colours:Red, Amber, Yellow, Green, Blue, Clear
    Temperature class:

    T6:  Tamb: - 40 °C ... + 40 °C
    T5:  Tamb: - 40 °C ... + 50 °C
    Storage temperature:- 20 °C ... + 80 °C
    Relative humidity:90%
    IP:IP66 (according to EN 60529)
    Duty cycle:100%
    Service life of the flash tube:light emission still 70% after 8 mill.flashes
    Lens material:polycarbonate (PC)
    Protective cage material:stainless steel
    Housing material:aluminium alloy yellow; plinth black
    Type of connection:screw terminals

    Terminal area:

    (max.) 2 x 4 mm2 (single wire);
    2 x 2.5 mm2 (fine wire)





    Cable entry:


    1 x cable gland M20 x 1.5, chrome-plated,
    (clamping range 6 –13 mm)
    1 x blanking plug, M20 x 1.5



    Weight:1.24 kg
