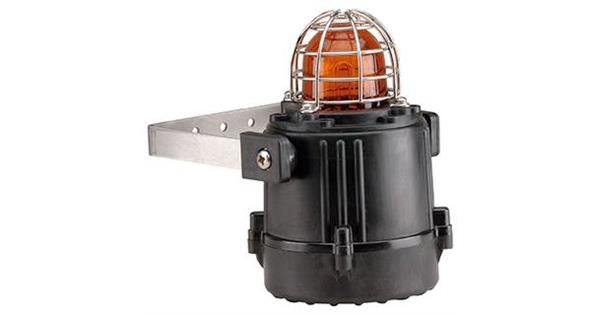

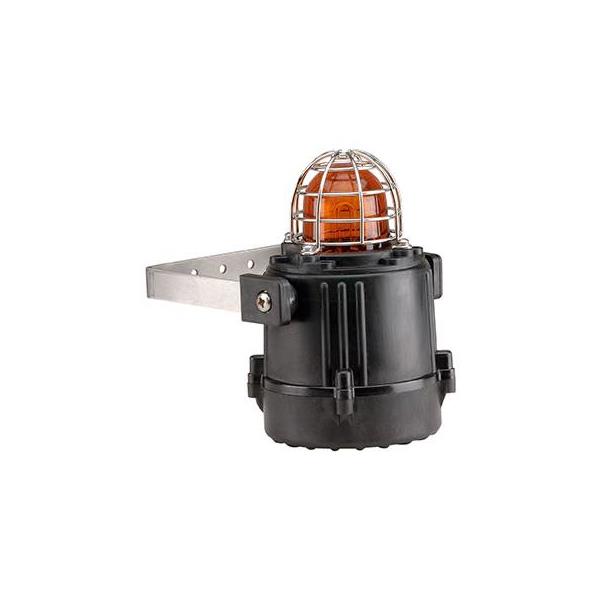

LED Beacon E2X BL2 AC230 BN1A1B/Y Yellow
LED IP64/IP66 IECEx/ATEX Zone2, UL/cULs
Varenr:
E2xBL2AC230BN1A1B/Y
|
|
E2xBL2 Multi-function LED Beacon & Status Light
The hazardous location E2xBL2 LED beacon and status light is UL/cULs approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.
The hazardous area E2xBL2 LED status light & beacon utilises an array of high power Cree® LED's, orientated to optimise visibility in any direction. The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a light output of up to 160 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device. The UV stable colour filter enhances the light output and is field replaceable.
Features:
• Very large termination area.
• Ingress protection IP66/67
• Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
• High and low power Steady On modes
• Three remotely selectable stages/channels on DC versions.
• Glass lens & Stainless Steel guard
• UV stable PC field replaceable lens colour filter
• Stainless steel fixings
• Dual cable entries
• Duplicate cable terminations (in & out for daisy-chain installations)
• Ratchet adjustable stainless steel ‘U’ bracket.
Approvals:
ATEX certificate: DEMKO 06 ATEX 0421554X
IECEx certficate: IECEx ULD 14.0012X
UL/cUL File ref: E245313
Specification:
| Source: | Array of 4 x High Power Cree® LED's |
| Modes: | 1Hz flash (60 fpm) |
| 1.5Hz flash (90 fpm) |
| 2Hz flash (120 fpm) |
| Double strike flash |
| Triple strike flash |
| High Power Steady |
| Low Power Steady |
| Eff. Intensity cd: | 87 cd - High Power Steady |
| Eff. Intensity cd: | 160 cd - 1Hz flash |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| Voltages DC: | 24vDC (18-54vDC) |
| Voltages AC: | 115vAC; 230vAC |
| Ingress protection: | IP rating per EN60079-0: IP64 |
| IP rating per EN60529: IP66 |
| Type rating per UL50E/NEMA250: 4/4X/13 |
| Enclosure matl: | UL94V0 PPS & ABS |
| Lens material: | Borosilicate glass dome with PC prismatic lens cover |
| Guard: | Stainless Steel dome guard as standard |
| Cable entries: | Dual M20x1.5 or 1/2"NPT |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included |
| EOL can be factory fitted |
| LED life: | 60,000 hours |
| Operating temp: | -20 to +55°C [-4° to +131°F] |
| Storage temp: | -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 1.48kg / 3.25Ibs |
* All candela data is representative of performance with clear lens at optimum voltage.
Part Codes: E2x BL2 [u] [e] [m] [s] [v] [x] / [y]
| Version: | Ident.: | Description: |
| | | |
| Product type: | E2x BL2 | LED Beacon/Status Light |
| | | |
| Voltage: [u] | DC024 | 24vDC (18-54vDC) |
| AC115 | 115vAC |
| AC230 | 230vAC |
| | | |
| Cable Entry Type: [e] | A | M20x1.5 & ½” NPT |
| B | M20x1.5 & M20x1.5 (Standard) |
| C | ½” NPT & ½” NPT |
| | | |
| Adaptor/Stopping | | |
| plug material: [m] | N | Nylon (Standard) |
| | | |
| Guard & Bracket | 1 | A2 304 Stainless Steel (Standard) |
| material: [s] | 2 | A4 316 Stainless Steel |
| | | |
| Product version: [v] | A1 | UL, cULs, IECEx & ATEX |
| | (Standard) |
| | | |
| Enclosure colour: [x] | B | Black (Standard) |
| | | |
| Lens colour: /[y] | R | Red |
| A | Amber (Orange) |
| Y | Yellow |
| G | Green |
| B | Blue |
| C | Clear (Transparent) |
| M | Magenta |
| Example part code: | E2x BL2 [u] [e] [m] [s] [v] [x] / [y] |
| E2x BL2 DC024 B N 1 A1 B / R |
| | |
| Explanation of tehe above: | |
| Product type: | "E2x BL2" LED Beacon/Status Light |
| Voltage: [u] | "DC024" = 24vDC |
| Cable Entry: [e] | "B" = M20x1.5 & M20x1.5 (Standard) |
| Stopping plug: [m] | "N" = Nylon (Standard) |
| Bracket material: [s] | "1" = A2 304 Stainless Steel (Standard) |
| Product version: [v] | "A1" = UL, cULs, IECEx & ATEX (Standard) |
| Enclosure colour: [x] | "B" = Black (Standard) |
| Lens colour: /[y] | "R" = (R) Red Lens colour |
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.23 | 0.70 | 0.93 | 0.25 | 0.24 | 1.00 |
| | High Power | Low Power | Flashing |
| Version: | Voltage: | Steady | Steady | 1Hz |
| | | | | |
| 24vDC | 18-54vDC | 240mA | 134mA | 110mA |
| 115vAC | 103.5-126.5vAC | 95mA | 78mA | 90mA |
| 230vAC | 207-253vAC | 48mA | 37mA | 45mA |
Also available as the E2xC1X05 combined alarm sounder and Xenon beacon and the E2xC1LD2 combined alarm sounder and LED beacon.
Coding:
- ATEX / IECEx certification
II 3G Ex nA IIC Gc T4 Ta -20°C to +55°C
II 3D Ex tb IIIC Dc T85°C Ta -20°C to +55°C - NEC Class / Zone ratings US
Class I Zone 2 AEx nA IIC Gc T4 Ta -20°C to +55°C
AEx tb IIIC Dc T85°C Ta -20°C to +55°C - CEC Class / Zone ratings Canada
Ex nA IIC Gc T4 Ta -20°C to +55°C
Ex nA IIC Gc T4A Ta -20°C to +40°C
Ex tb IIIC Dc T85°C Ta -20°C to +55°C - NEC & CEC Class / Division Ratings for US / Canada
Class I, Div 2, ABCD T4A Ta -20°C to +55°C
Class II, Div 2, FG T6 Ta -20°C to +55°C
Class III, Div 1&2 Ta -20°C to +55°C
Multi-function patterns:
| Stage 1: | Stage 2: | Stage 3: |
| [On board] | [Remote] | [Remote] |
| | | |
| Steady High Power | Flashing 1Hz | Triple Strike |
| Steady Low Power | Flashing 1Hz | Triple Strike |
| Flashing 1Hz | 2x Flash 2Hz | Triple Strike |
| Flashing 1.5Hz | Flashing 2Hz | Double Strike |
| Flashing 2Hz | Triple Strike | Triple Strike |
| Double Strike | Steady High Power | Triple Strike |
| Triple Strike | Flashing 2Hz | Double Strike |
| | | |
Note: Remote second and third stage on DC units only
