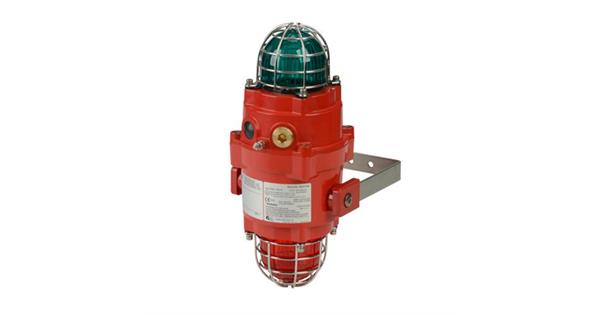

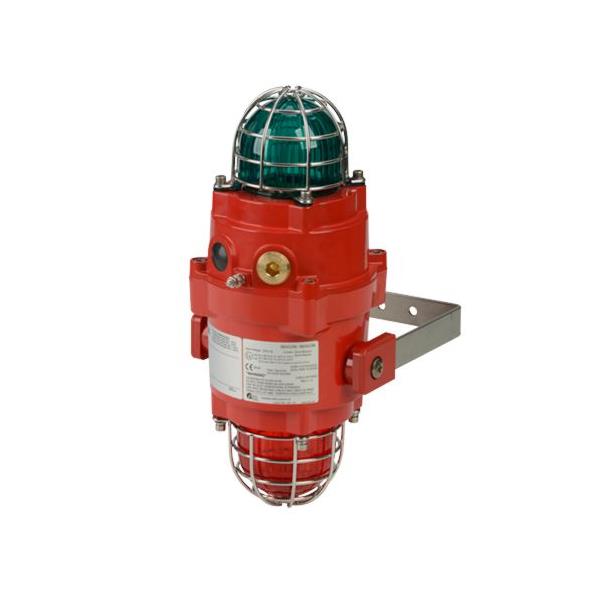

BExCBG05-05 Explosion Proof Dual Xenon Beacon 5 Joule
BExCBG0505DPAC230AB1A1R/Y/Y with Yellow + Yellow Lens
The flameproof BExCBG05-05 dual Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX and Ex EAC standards.
The BExCBG05-05D dual 5 Joule beacons robust construction enables installation in the harshest of environments. The beacons may be connected from a single supply for simultaneous operation or from separate supplies for independent operation. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.
Features:
• Marine grade, corrosion proof, LM6 aluminium enclosure
• Automatic synchronisation on multi-beacon system.
• Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
• Xenon tubes mechanically secured against shock & vibration
• Glass lens & Stainless Steel guard
• Very large termination area.
• Dual M20 cable entries - adaptors available.
• Stopping plug included.
• Ratchet adjustable stainless steel ‘U’ bracket.
• Reverse polarity diode fitted.
• IP66/67 ingress protection.
• 120+120 candela effective light intensity.
• UV stable PC, field replaceable, colour lens filters.
Approvals:
IECEx KEM 10.0024X
IEC 60079-0 : 2011
IEC 60079-1 : 2007-4
IEC 60079-31 : 2013
ATEX KEMA 00ATEX2222X
EN 60079-0 : 2012 + A11
EN 60079-1 : 2007
EN 60079-31 : 2014
TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109
Coding:
II 2G Ex d IIB T4 Gb Ta. -50°C to +70°C
II 2D Ex tb IIIC T115°C Db Ta. -50°C to +55°C
II 2D Ex tb IIIC T130°C Db Ta. -50°C to +70°C
Specification:
Energy: | 5 Joules x 2 (5Ws) |
Flash rate: | 1Hz (60 fpm) |
Peak Candela: | 500,000 cd x 2 - calculated from energy (J) |
Eff. Intensity cd: | 250 cd x 2 - calculated from energy (J) |
Peak Candela: | 39,463 cd* x 2 - measured ref. to I.E.S. |
Eff. Intensity cd: | 120 cd* x 2 - measured ref. to I.E.S. |
Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
Voltages DC: | 12vDC; 24vDC; 48vDC |
Voltages AC: | 115vAC; 230vAC |
Ingress protection: | IP66/67 |
Enclosure matl: | Marine grade copper free LM6 Aluminium |
Enclosure finish: | Chromate & powder coated finish - anti-corrosion. |
Colour: | RAL3000 Red |
| (others available on request) |
Cable entries: | 2 x M20 ISO (1 x stopping plug included as standard) |
| Adaptors to M25, 1/2" & 3/4" NPT can be specified |
Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
Enclosure volume: | < 2 litres |
Line monitoring: | Blocking diode included |
| EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor |
| or diode (DC versions) can be fitted |
Grounding stud: | M5 |
Temp. range: | -50° to +70°C (-58°F to +158°F) |
Relative humidity: | 90% at 20°C [68°F] |
Tube life: | Emissions are reduced to 70% after 8 million flashes |
Weight: | DC: 4.00kg/8.8Ibs AC: 4.35kg/9.57Ibs |
*All candela data is representative of performance with clear lens at optimum voltage.
Part Codes: BExCBG0505 D [u] [e] [m] [s] [v] [x] . [y] [y]
Version: | Part code: | |
| | |
Product type: | BExCBG0505 | Explosion proof Dual 5J |
| | Xenon Beacon |
Type: | D | Ex d, |
| | with "P" UV stable PC Colour Lens |
| | |
Voltage: [u] | 012 | 12vDC |
| 024 | 24vDC |
| 048 | 48vDC |
| 115 | 115vAC |
| 230 | 230vAC |
| | |
Cable Entry Type: [e] | A | 2 x M20x1.5mm (Standard) |
| B | 2 x 1/2" NPT - adaptors |
| C | 2 x 3/4" NPT - adaptors |
| D | 2 x M25x1.5mm - adaptors |
| E | 1 x 1/2" NPT - adaptor |
| F | 1 x 3/4" NPT - adaptor |
| G | 1 x M25x1.5mm - adaptor |
| Note: | M20 stopping plugs for unused |
| | entries supplied with all options |
| | |
Adaptor/Stopping | B | Brass (Standard) |
plug material: [m] | N | Nickel Plated |
| S | Stainless Steel |
| | |
Guard & Bracket | 1 | A2 304 Stainless Steel (Standard) |
material: [s] | 2 | A4 316 Stainless Steel |
| 3 | A2 304 St/St with Equip. Tag |
| 4 | A4 316 St/St with Equip. Tag (304) |
| | |
Product version: [v] | | A1 IECEx & ATEX |
| | (Default) (A1 is not included in |
| | the Part Code because of space |
| | limitations, and as this is |
| | the only option) |
| | |
Enclosure colour: [x] | | R Red RAL3000 |
| | (Default) (R is not included in |
| | the Part Code because of space |
| | limitations, and as this is |
| | the only option) |
| | |
1 st. Lens colour: .[y] | .1 | R Red |
| .2 | A Amber (Orange) |
| .3 | Y Yellow |
| .4 | G Green |
| .5 | B Blue |
| .7 | C Clear (Transparent) |
| .8 | M Magenta |
| | |
1 st. Lens colour: .[y] | 1 | R Red |
| 2 | A Amber (Orange) |
| 3 | Y Yellow |
| 4 | G Green |
| 5 | B Blue |
| 7 | C Clear (Transparent) |
| 8 | M Magenta |
Example part code: | BExCBG0505 D [u] [e] [m] [s] [v] [x] . [y] |
| BExCBG0505 D 024 A B 1 . 1 4 |
| |
Explanation of tehe above: | |
Product type: | "BExCBG0505" Ex-proof Dual 5J |
| Xenon Beacon |
Type: | "D" = Ex d, with "P" UV stable |
| PC Colour Lens |
Voltage: [u] | "024" = 24vDC |
Cable Entry: [e] | "A" = 2 x M20x1.5mm |
Stopping plug: [m] | "B" = Brass (Standard) |
Bracket material: [s] | "1" = A2 304 Stainless Steel (Standard) |
Product version: [v] | "blank" = IECEx & ATEX (Standard) |
Enclosure colour: [x] | "blank" = Red RAL3000 (Standard) |
1 st. Lens colour: .[y] | ."1" = (R) Red Lens colour |
1 st. Lens colour: [y] | "4" = (G) Green Lens colour |
Effective Candela lens colour factor:
Red | Amber | Yellow | Green | Blue | Clear |
0.23 | 0.70 | 0.93 | 0.25 | 0.24 | 1.00 |
Current Consumption:
Version: | | Voltage: | Current (per beacon): |
12vDC | | 10-14vDC | 750mA |
24vDC | | 20-28vDC | 300mA |
48vDC | | 42-54vDC | 180mA |
115vAC | 50/60Hz | +/-10% | 140mA |
230vAC | 50/60Hz | +/-10% | 55mA |
Assemblies:
The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact our sales department.
