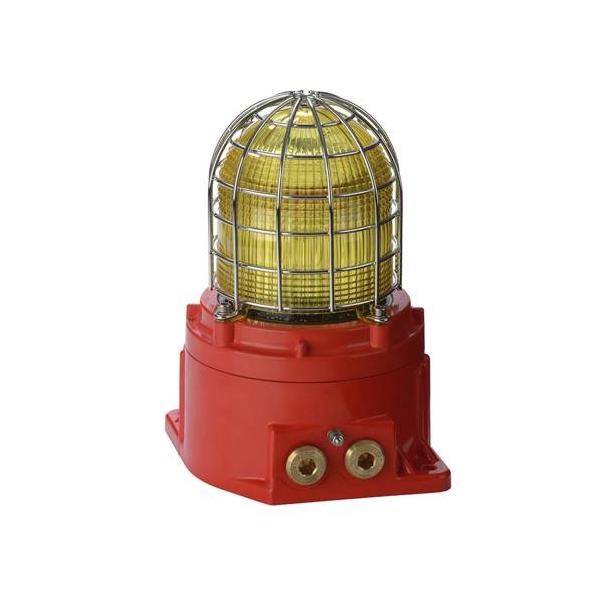

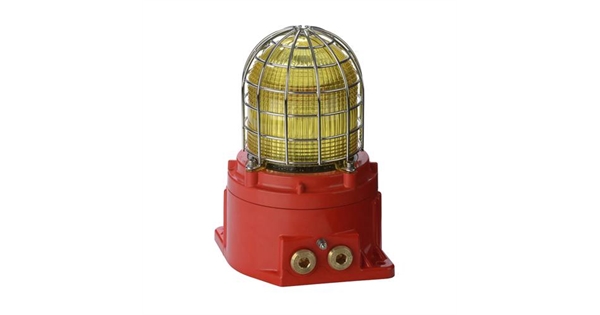

Ex-LED Beacon GNExB2 LD2 115vAC YELLOW
LED 1-2Hz GRP/316 IP66 Ex-db-IIC-Gb-T6
Varenr:
GNExB2LD2115AB2A1R.3
|
|
GNExB2LD2 LED Multifunction Beacon
The GNExB2LD2 is an IECEx & ATEX approved explosion proof high output LED multifunction beacon. The robust IP66 corrosion proof GRP enclosure and extended temperature range ensures the GNExB2LD2 is suitable for all Zone 1, 2, 21 & 22 hazardous location signalling applications.
The GNExB2LD2 beacons utilise an array of high output LED's oriented to optimise visibility in any direction. The beacon can be configured as a steady status indicator or one of the effective flashing modes may be used for warning applications. The field replaceable colour filter enhances the light output and is constructed from UV stable PC.
The GRP enclosure features a threaded flame path, triple cable entries and a large termination area - all of which significantly reduce installation time.
Features:
• Robust, corrosion proof GRP (glass reinforced polyester) enclosure
• Ingress protection IP66
• Automatic synchronisation on multi-beacon systems
• Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
• High and low power Steady modes
• Three remotely selectable stages/channels on DC versions.
• Glass lens & Stainless Steel guard
• UV stable PC field replaceable lens colour filter
• Stainless steel fixings
• Triple cable entries
• Duplicate cable terminations (in & out for daisy-chain installations)
Approvals:
• IECEx UL 15.0003X
IEC 60079-0 : 2011
IEC 60079-1 : 2014
IEC 60079-31 : 2013
• ATEX DEMKO 15ATEX1448X
EN 60079-0 : 2012
EN 60079-1 : 2014
EN 60079-31 : 2014
Coding:
•II 2G Ex db IIC Gb T6 Ta -50°C to +65°C
•II 2G Ex db IIC Gb T5 Ta -50°C to +70°C
•II 2D Ex tb IIIC Db T85°C Ta -50°C to +70°C
Specification:
| Source: | Array of 4 x High Power Cree® LED's |
| Modes: | 1Hz flash (60 fpm) |
| | 1.5Hz flash (90 fpm) |
| 2Hz flash (120 fpm) |
| Double strike flash |
| Triple strike flash |
| High Power Steady |
| Low Power Steady |
| Eff. Intensity cd: | 174 cd - High Power Steady |
| Eff. Intensity cd: | 338 cd - 1Hz flash |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| Voltages DC: | 24vDC |
| Voltages AC: | 115vAC; 230vAC |
| Ingress protection: | IP66 |
| | |
| Enclosure: | UV stable GRP (glass reinforced polyester) |
| Colour: | Natural Red - can be provided in alternative colours |
| Cable entries: | 3 x M20 ISO (2 stopping plugs inc.) |
| | Adaptors to M25, 1/2" & 3/4" NPT can be specified |
| Terminals: | 0.5 to 2.5mm² |
| | |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included |
| EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor |
| or diode (DC versions) can be fitted |
| LED life: | 60,000 Hours |
| Temp. range: | -50° to +70°C (-58°F to +158°F) |
| |
| Weight: | 3.5kg / 7.7lbs |
*All candela data is representative of performance with clear lens at optimum voltage.
Part Codes:
(The actual choices for this particular model are highlighted in red)
| Version: | Part code: | |
| | | |
| Product type: | GNExB2 | |
| | |
| Type: | LD2 | LED Multifunctional Beacon |
| | |
| Voltage: [u] | 024 | 18-54vDC |
| 115 | 103,5-126,5vAC |
| 230 | 207-253vAC |
| | |
| Cable Entry Type: [e] | A | 3 x M20x1.5mm |
| B | 2 x 1/2" NPT - adaptors |
| C | 2 x 3/4" NPT - adaptors |
| D | 2 x M25x1.5mm - adaptors |
| E | 1 x 1/2" NPT - adaptor |
| F | 1 x 3/4" NPT - adaptor |
| G | 1 x M25x1.5mm - adaptor |
| H | 3 x 1/2" NPT - adaptors |
| I | 3 x 3/4" NPT - adaptors |
| J | 3 x M25x1.5mm - adaptors |
| | |
| Adaptor/Stopping | B | Brass |
| plug material: [m] | N | Nickel Plated |
| S | Stainless Steel |
| | |
| Guard material: [s] | 1 | A2 304 Stainless Steel |
| 2 | A4 316 Stainless Steel |
| | |
| Product version: [v] | A1 | IECEx & ATEX |
| | |
| Enclosure colour: [x] | R | Red |
| S | Special - contact E2S for |
| | alternative enclosure colours |
| | |
| Lens colour: /[y] | 1 | R Red |
| 2 | A Amber (Orange) |
| 3 | Y Yellow |
| 4 | G Green |
| 5 | B Blue |
| 7 | C Clear (Transparent) |
| 8 | M Magenta |
| Example part code: | GNExB2 LD2 [u] [e] [m] [s] [v] [x] . [y] |
| Makes this part code : | GNExB2 LD2 115 A B 2 A1 R . 3 |
| | |
| Explanation of above | |
| Product type: | "GNExB2" |
| Type: | "LD2" = LED Multifunctional Beacon |
| Voltage: [u] | "115" = 103,5-126,5vAC |
| Cable Entry: [e] | "A" = 3 x M20x1.5mm |
| Stopping plug: [m] | "B" = Brass stopping plug |
| Guard material: [s] | "2" = A4 316 Stainless Steel Guard |
| Product version: [v] | "A1" = IECEx & ATEX certified |
| Enclosure colour: [x] | "R" = Red Enclosure colour |
| Lens colour: .[y] | ."3" = (Y) Yellow Lens colour |
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.15 | 0.51 | 0.86 | 0.49 | 0.12 | 1.00 |
Current Consumption:
| Version: | Voltage: | Steady High P. | Steady Low P. | Flashing 1Hz |
| | Current: | Current: | Current: |
| 24vDC | 18-54vDC | 240mA | 134mA | 110mA |
| 115vAC | 103.5-126.5vAC | 95mA | 78mA | 90mA |
| 230vAC | 207-253vAC | 48mA | 37mA | 45mA |
Assemblies:
The GNExB2LD2 is available as a plated assembly configured with up to 4 x Xenon strobe or LED beacons with a GNExJ2 Ex d junction box or 5 x beacons without a junction box. Contact E2S for further information.
