Ex LED Beacon BExBG L2DP 24vDC MAGENTA
18-54vDC IP66/67 SS304 EExdIICT4/T5
Varenr:
BEXBGL2DP024AB1A1R.8
|
|

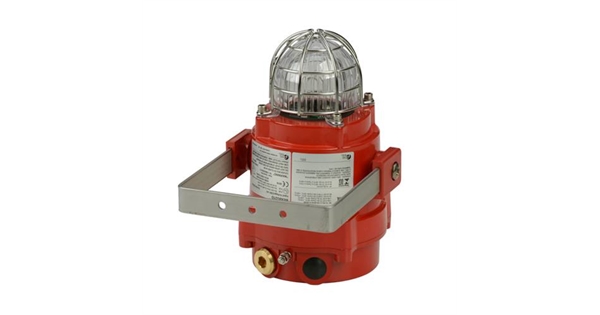

BExBGL2 Explosion Proof L.E.D. Status Light & Beacon
The flameproof BExBGL2 L.E.D. multi-function beacon is suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx and ATEX standards.
The BExBGL2 explosion proof LED status light & beacon utilises an array of high power Cree® LED's, orientated to optimise visibility in any direction.
The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a light output of up to 160 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device.
The UV stable colour filter enhances the light output and is field replaceable.
Features:
• Marine grade, corrosion proof, LM6 aluminium enclosure
• Ingress protection IP66/67
• Automatic synchronisation on multi-beacon systems
• Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
• High and low power Steady modes
• Three remotely selectable stages/channels on DC versions.
• Glass lens & Stainless Steel guard
• UV stable PC field replaceable lens colour filter
• Stainless steel fixings
• Dual cable entries
• Duplicate cable terminations (in & out for daisy-chain installations)
• Ratchet adjustable stainless steel ‘U’ bracket.
Approvals:
IECEx KEM 10.0002X
IEC 60079-0 : 2011
IEC 60079-1 : 2007-4
IEC 60079-31 : 2013
ATEX KEMA 00ATEX2006X
EN 60079-0 : 2012 + A11
EN 60079-1 : 2007
EN 60079-31 : 2014
Coding:
• Ex d IIC T6 Gb Ta. -50°C to +60°C
• Ex d IIC T5 Gb Ta. -50°C to +70°C
• Ex tb IIIC T60°C Db Ta. -50°C to +40°C
• Ex tb IIIC T75°C Db Ta. -50°C to +55°C
• Ex tb IIIC T90°C Db Ta. -50°C to +70°C
Specification:
| Source: | Array of 4 x High Power Cree® LED's |
| Modes: | 1Hz flash (60 fpm) |
| 1.5Hz flash (90 fpm) |
| 2Hz flash (120 fpm) |
| Double strike flash |
| Triple strike flash |
| High Power Steady |
| Low Power Steady |
| Eff. Intensity cd: | 87 cd - High Power Steady |
| Eff. Intensity cd: | 160 cd - 1Hz flash |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| Voltages DC: | 24vDC (18-54vDC) |
| Voltages AC: | 115vAC; 230vAC |
| Ingress protection: | IP66/67 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish - anti-corrosion. |
| Colour: | RAL3000 Red |
| (others available on request) |
| Cable entries: | 2 x M20 ISO (1 x stopping plug included as standard) |
| Adaptors to M25, 1/2" & 3/4" NPT can be specified |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Enclosure volume: | < 2 litres |
| Line monitoring: | Blocking diode included |
| EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor |
| or diode (DC versions) can be fitted |
| Grounding stud: | M5 |
| Temp. range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 90% at 20°C [68°F] |
| Tube life: | Emissions are reduced to 70% after 8 million flashes |
| Weight: | DC: 2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs |
*All candela data is representative of performance with clear lens at optimum voltage.
Part Codes: BExBGL2 DP [u] [e] [m] [s] [v] [x] . [y]
| Version: | Part code: | |
| | | |
| Product type: | BExBGL2 | Explosion proof LED Beacon |
| Type: | DP | Ex d, UV stable PC Colour Lens |
| | | |
| Voltage: [u] | 024 | 24vDC (18-54vDC) |
| 115 | 115vAC |
| 230 | 230vAC |
| | | |
| Cable Entry Type: [e] | A | 2 x M20x1.5mm (Standard) |
| B | 2 x 1/2" NPT - adaptors |
| C | 2 x 3/4" NPT - adaptors |
| D | 2 x M25x1.5mm - adaptors |
| E | 1 x 1/2" NPT - adaptor |
| F | 1 x 3/4" NPT - adaptor |
| G | 1 x M25x1.5mm - adaptor |
| Note: | M20 stopping plugs for unused |
| | entries supplied with all options |
| | | |
| Adaptor/Stopping | B | Brass (Standard) |
| plug material: [m] | N | Nickel Plated |
| S | Stainless Steel |
| | | |
| Guard & Bracket | 1 | A2 304 Stainless Steel (Standard) |
| material: [s] | 2 | A4 316 Stainless Steel |
| | | |
| Product version: [v] | A1 | IECEx & ATEX Group II 2G/D, |
| | Zone 1, 2, 21 & 22 (Standard) |
| | | |
| Enclosure colour: [x] | R | Red RAL3000 (Standard) |
| S | Special - contact us! |
| | | |
| Lens colour: .[y] | .1 | R Red |
| .2 | A Amber (Orange) |
| .3 | Y Yellow |
| .4 | G Green |
| .5 | B Blue |
| .7 | C Clear (Transparent) |
| .8 | M Magenta |
| Example part code: | BExBGL2 DP [u] [e] [m] [s] [v] [x] . [y] |
| BExBGL2 DP 024 A B 1 A1 R . 1 |
| | |
| Explanation of tehe above: | |
| Product type: | "BExBGL2" Ex-proof LED Beacon |
| Type: | "DP" = Ex d, UV stable PC Colour Lens |
| Voltage: [u] | "024" = 24vDC |
| Cable Entry: [e] | "A" = 2 x M20x1.5mm |
| Stopping plug: [m] | "B" = Brass (Standard) |
| Bracket material: [s] | "1" = A2 304 Stainless Steel (Standard) |
| Product version: [v] | "A1" = IECEx & ATEX Group II 2G/D, |
| Zone 1, 2, 21 & 22 (Standard) |
| Enclosure colour: [x] | "R" = Red RAL3000 (Standard) |
| Lens colour: .[y] | ."1" = (R) Red Lens colour |
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.23 | 0.70 | 0.93 | 0.25 | 0.24 | 1.00 |
| | High Power | Low Power | Flashing |
| Version: | Voltage: | Steady | Steady | 1Hz |
| | | | | |
| 24vDC | 18-54vDC | 240mA | 134mA | 110mA |
| 115vAC | 103.5-126.5vAC | 95mA | 78mA | 90mA |
| 230vAC | 207-253vAC | 48mA | 37mA | 45mA |
Assemblies:
The products from the BEx range are available as multiple unit assemblies pre-wired with and without junction boxes. See the BExP data sheet for further info or contact our sales department.
