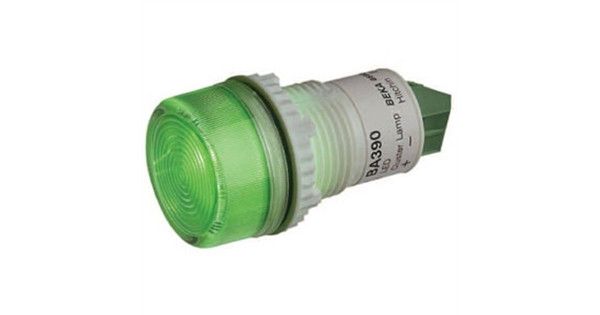

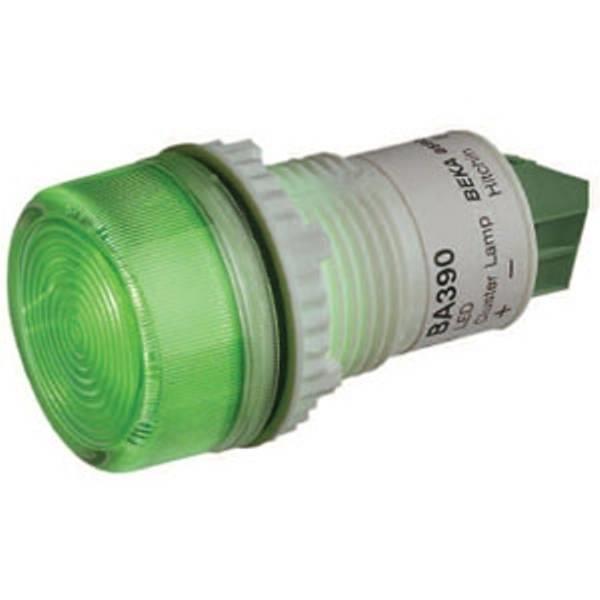

IS-pB1 Panel Mount Indicator
The IS-pB1 is a compact, panel mount LED indicator providing reliable cost-effective visual status indication in all hazardous areas. Each IS-pB1 contains a group of high efficiency light emitting diodes mounted behind a coloured diffuser to produce a bright, uniform output with a typical life greater than ten years.
All models contain a 20mA current regulator which maintains constant brilliance and provides protection against excess voltages.
Features
• Two lamps may be powered from a single IIC
intrinsically safe Zener barrier or galvanic isolator and up to four lamps from a IIB device.
• Red, amber, green, blue and white comply with the
indicator light colour requirements specified in IEC204-1, allowing all plant conditions to be annunciated.
• Mounting is via a single industry standard 22.5mm
diameter hole.
Approvals:
• ATEX certificate: BAS 01ATEX1062X, EN 50014 : 1997 + Amd 1& 2, EN 50020 : 1994, EN 50284: 1999
• IECEx certificate: IECEx ITS 08.0030X, IEC 60079-0 : 2007-10, IEC 60079-11 : 2006, IEC 60079-26 : 2006
• FM file: 3022662 3610: Entity, 3611: Nonincendive
Part codes:
IS-pB1 - [x]
ATEX II 1G Ex ia IIC T4
IECEx Ga Ex ia IIC T4
FM CL I: Div 1: GP A B C & D: T4 @ 60°C
CL I: Div 2: GP A B C & D: T4 @ 60°C
[x]: L.E.D. colour: A: Amber
R: Red
B: Blue
G: Green
W: White
One or two IS-pB1 lamps may be powered from any Ex ia IIC certified Zener barrier or galvanic isolator whose output safety parameters do not exceed:
Uo 30V dc Po 1.3W at 40°C Po 1.2W at 60°C
(e.g. 28V, 300Ω or 28V, 234Ω Zener barrier or galvanic isolator)
Gas groups IIA, IIB or IIC
Location Zone 0, 1 or 2
Up to four IS-pB1 lamps may be powered from any certified Ex ia IIB Zener barrier or galvanic isolator whose output safety parameters do not exceed:
Uo 30V dc Po 1.3W at 40°C
Gas groups IIA or IIB
Location Zone 0, 1 or 2
Accessories:
IS-pB1-LEGLegend Plate
IS-pB1-RSARear Sealing Assembly IP65
Specification:
Operating voltage: 14-30V dc
Reverse voltage: 60V max.
Current: 18 to 22mA
Output: Typical at 150mm:
Red 190 lux
Amber 150 lux
Green 250 lux
Blue 150 lux
White 300 lux
Ingress protection: Front IP66 - Rear IP20 - see accessories for optional IP65 rear sealing assembly.
Rating: Continuous
Housing material: Nylon 6
Lens material: Polycarbonate
Mounting: Panel mont - 22.5mm
Terminals: Screw clamp for 1.5mm2
Operating temp: -20 to 60°C
Storage temp: -40 to 85°C
Relative humidity: 5 to 95% non condensing
