Ex LED Beacon IS-L101L 16-28vDC WHITE
LED Flash IP66 Ex ia IIC T4 Ga w/Lugs
|
|

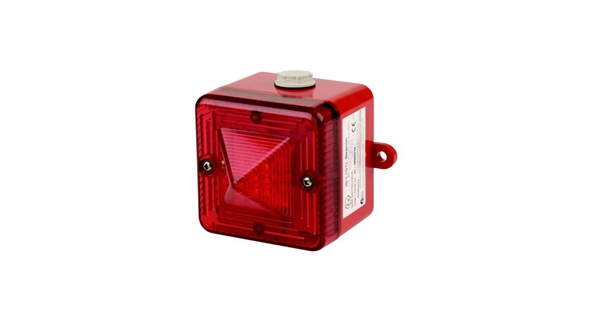

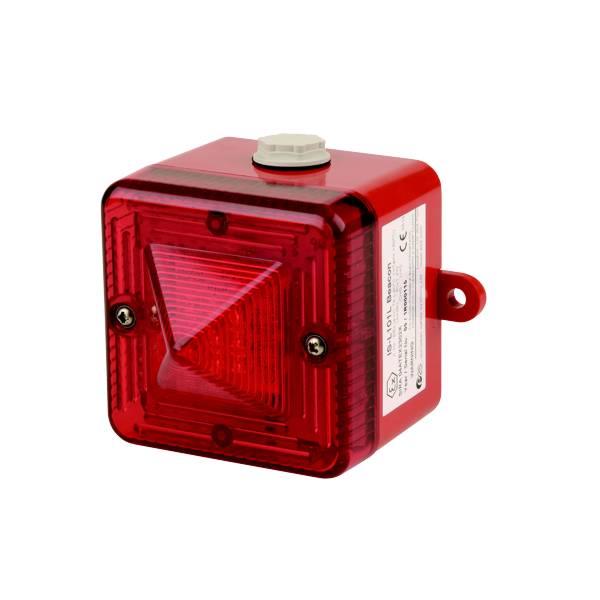

IS-L101L LED Beacon
The IS-L101L unit is an intrinsically safe field mounting beacon which provides a bright flashing warning signal.
Description:
The unit can be used independently or combined with an IS-A105N 49 alarm sounder. Combination units can utilise a common zener barrier or galvanic isolator and may be coupled together or mounted seperately.
With the IS-A105N the alarm accept function can be utilised. By closing a pair of external contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2 hours. If after the preset time the alarm condition still exists the sounder will activate again.
Features:
Input overload and reverse current protection
Prismatic lens optimises L.E.D effectiveness
Specification:
Light source: | Array of 6 high intensity L.E.D’s. |
L.E.D. colours: | Red, Amber, Blue, Green & White |
Note: | Blue, Green & White LED versions utilise a Clear lens |
Standalone mode: | 2Hz (2 double flashes per second) |
Effective intensity: | 48cd* – measured ref. to I.E.S. |
With IS-A105N: | On: 1 Hz (1 double flash per second) |
| Silenced: 2 Hz (2 double flashes per second |
| – alarm accepted) |
Voltage: | 16-28vdc via Zener barrier or galvanic isolator |
Current: | Stand alone: 25mA typical |
With IS-A105N: | 35mA typical |
Ingress protection: | IP66 |
Rating: | Continuous |
Housing material: | UL94V0 & 5VA FR ABS & PC |
Housing colour: | RAL3000 Red |
Fixings: | Stainless Steel |
Cable entries: | 1 x M20 clearance gland knockout |
Terminals: | 0.5 to 2.5mm² |
Operating temp: | -40° to +60°C [-40 to +140°F] |
Storage temp: | -40° to +70°C [-40 to +158°F] |
Relative humidity: | 90% at 20°C [68°F] |
Weight: | 0.40Kg/0.88Ibs |
| |
Part codes:
IS-L101L-R/[x]
ATEX / IECEx / FM
II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
IS Class I, Zone 0, AEx ia IIC T4 Ta= +60°C
IS Class l, Division 1, Groups A, B, C, D T4
GOST-R
0ExiaIICT4 IP65 -40° to +60°C
[x]: Lens/LED colour: | A: Amber |
| B: Blue |
| G: Green |
| R: Red |
| W: White |
Note: Blue, Green & White LED versions utilise a Clear lens
May be powered from any certified Zener barrier or galvanic isloator whose output parameters do not exceed:
Uo : 28VDC Io : 660mA Po : 1.2W
Approvals:
• ATEX certificate: SIRA 04ATEX2302X
• IECEx certificate: IECEx SIR 04.0039X
• FM approved
• GOST-R certificate: POCC GB.JB05.B03365
Note: The IS-L101L can be combined with the IS-A105N intrinsically safe alarm sounder.
