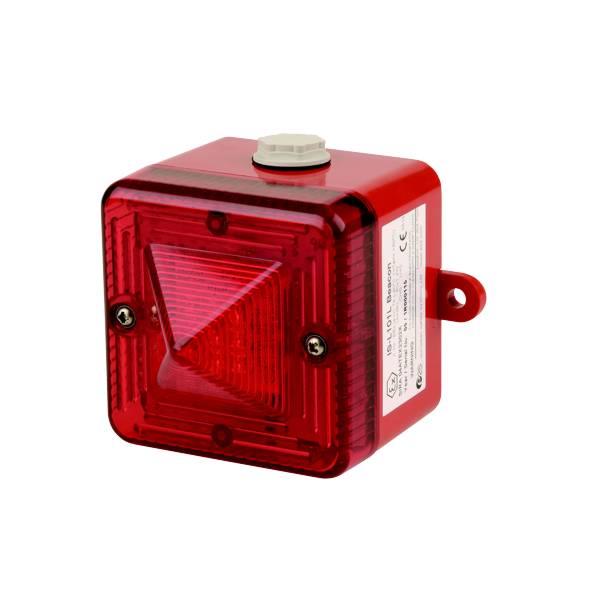

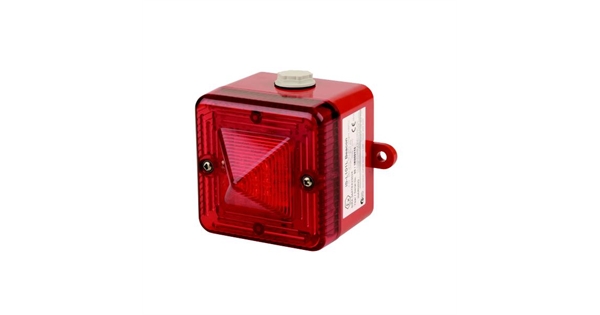

IS-L101L LED Beacon

The IS-L101L unit is an intrinsically safe field mounting beacon which provides a bright flashing warning signal.





Description:


The unit can be used independently or combined with an IS-A105N 49 alarm sounder. Combination units can utilise a common zener barrier or galvanic isolator and may be coupled together or mounted seperately.
With the IS-A105N the alarm accept function can be utilised. By closing a pair of external contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2 hours. If after the preset time the alarm condition still exists the sounder will activate again.



Features:


Input overload and reverse current protection
Prismatic lens optimises L.E.D effectiveness





Light source:	Array of 6 high intensity L.E.D’s.
L.E.D. colours:	Red, Amber, Blue, Green & White
Note:	Blue, Green & White LED versions utilise a Clear lens
Standalone mode:	2Hz (2 double flashes per second)
Effective intensity:	48cd* – measured ref. to I.E.S.
With IS-A105N:	On: 1 Hz (1 double flash per second)
	Silenced: 2 Hz (2 double flashes per second
	– alarm accepted)
Voltage:	16-28vdc via Zener barrier or galvanic isolator
Current:	Stand alone: 25mA typical
With IS-A105N:	35mA typical
Ingress protection:	IP66
Rating:	Continuous
Housing material:	UL94V0 & 5VA FR ABS & PC
Housing colour:	RAL3000 Red
Fixings:	Stainless Steel
Cable entries:	1 x M20 clearance gland knockout
Terminals:	0.5 to 2.5mm²
Operating temp:	-40° to +60°C [-40 to +140°F]
Storage temp:	-40° to +70°C [-40 to +158°F]
Relative humidity:	90% at 20°C [68°F]
Weight:	0.40Kg/0.88Ibs



Part codes:

IS-L101L-R/[x]
ATEX / IECEx / FM
II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
IS Class I, Zone 0, AEx ia IIC T4 Ta= +60°C
IS Class l, Division 1, Groups A, B, C, D T4
GOST-R
0ExiaIICT4 IP65 -40° to +60°C

[x]: Lens/LED colour:	A: Amber
	B: Blue
	G: Green
	R: Red
	W: White

Note: Blue, Green & White LED versions utilise a Clear lens


May be powered from any certified Zener barrier or galvanic isloator whose output parameters do not exceed:
Uo : 28VDC Io : 660mA Po : 1.2W


Approvals:


• ATEX certificate: SIRA 04ATEX2302X
• IECEx certificate: IECEx SIR 04.0039X
• FM approved
• GOST-R certificate: POCC GB.JB05.B03365





Note: The IS-L101L can be combined with the IS-A105N intrinsically safe alarm sounder.
