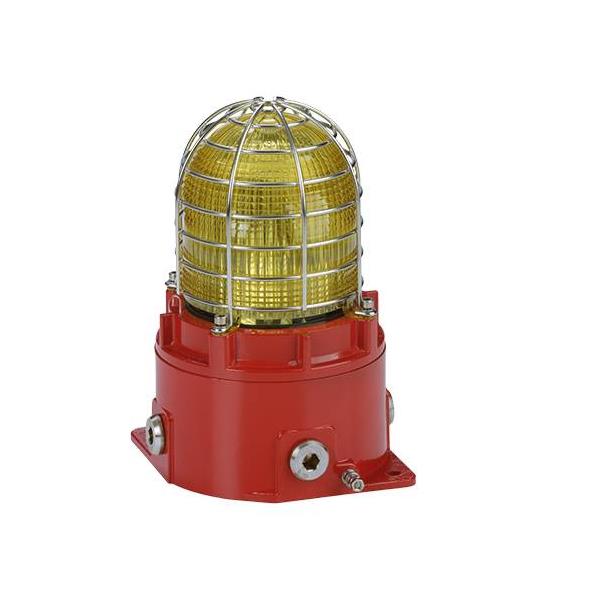

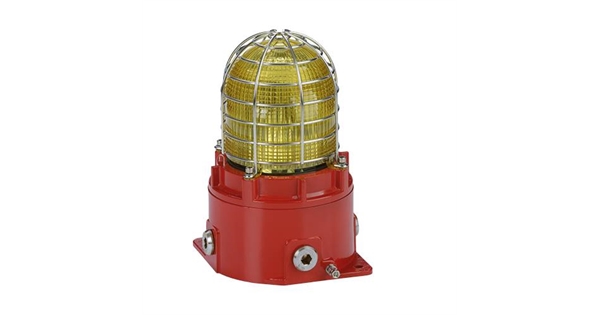

Ex Rot. Beacon STExB2 RT1 230vAC YELLOW
SS316L IP66 25w Halogen Ex-db-IIC-Gb-T6
Varenr:
STEXB2RT1230AS2R.3
|
|
STExB2 RT1 Rotating Halogen Beacon
in 316L Stainless Steel enclosure
The STExB2RT1 is an explosion proof rotating Halogen beacon. The robust IP66 corrosion proof 316L stainless steel enclosure ensures the STExB2RT1 is suitable for all Zone 1, 2, 21 & 22 hazardous location signalling applications.
The STExB2RT1 beacons produce a high output rotating signal required for effective signalling in environments with elevated levels of ambient light. The field replaceable colour filter enhances the visibility of the beacon and is constructed from UV stable PC. The stainless steel enclosure features a threaded flame path, four cable entries and a large termination area - all of which significantly reduce installation time.
Features:
• Robust corrosion proof 316L stainless steel enclosure
• Ingress protection IP66
• 316 Stainless Steel guard included as standard
• Field replaceable UV stable lens colour filter
• 316 Stainless steel stopping plugs included
• 4 x M20 cable entries
• Stainless steel fasteners
• Duplicate cable terminations (in & out for daisy-chain installations)
Approvals:
IECEx ULD 16.0017X
IEC 60079-0 : 2011
IEC 60079-1 : 2014
IEC 60079-31 : 2013
ATEX DEMKO 16 ATEX 1466X
EN 60079-0 : 2012 + A11 : 2013
EN 60079-1 : 2014
EN 60079-31 : 2014
Coding:
• Ex db IIC T5 Gb Ta. -50° to +40°C
• Ex db IIC T4 Gb Ta. -50° to +70°C
• Ex tb IIIC T125°C Db Ta. -50° to +70°C
Specification:
| Energy: | 20W (DC voltages) |
| 25W (AC voltages) |
| Source: | Halogen Lamp G6,35/GY6,35 |
| Rotation speed: | 180RPM (+/-30RPM) |
| Eff. Intensity: | 633 cd |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| Voltages DC: | 12vDC; 24vDC |
| Voltages AC: | 115vAC; 230vAC |
| Ingress protection: | EN60529: IP66 |
| Drive life: | >5,000 hrs |
| Duty cycle: | 100% |
| Enclosure matl: | 316L Stainless Steel |
| Enclosure finish: | Chromated & powder coated |
| Colour: | RAL3000 Red |
| Cable entries: | 4 x M20 ISO (3 x stopping plugs included as standard) |
| Adaptors to M25, 1/2" & 3/4" NPT can be specified |
| Terminals: | 0.5 - 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included |
| EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor |
| or diode (DC versions) can be fitted |
| Grounding stud: | M5 |
| Temp. range: | -50° to +70°C (-58°F to +158°F) |
| Relative humidity: | 90% at 20°C [68°F] |
| Weight: | 6.0kg / 13.23lbs |
*All candela data is representative of performance with clear lens at optimum voltage.
Part Codes: STExB2 RT1 [u] [e] [m] [s] [x] . [y]
| Version: | Part code: | |
| | | |
| Product type: | STExB2 | |
| Type: | RT1 | Halogen Rotating Beacon |
| | | |
| Voltage: [u] | 012 | 12vDC |
| 024 | 24vDC |
| 115 | 115vAC (115-120vAC) |
| 230 | 230vAC |
| | | |
| Cable Entry Type: [e] | A | 4 x M20x1.5mm (Standard) |
| B | 2 x 1/2" NPT - adaptors |
| C | 2 x 3/4" NPT - adaptors |
| D | 2 x M25x1.5mm - adaptors |
| E | 1 x 1/2" NPT - adaptor |
| F | 1 x 3/4" NPT - adaptor |
| G | 1 x M25x1.5mm - adaptor |
| H | 3 x 1/2" NPT - adaptors |
| I | 3 x 3/4" NPT - adaptors |
| J | 3 x M25x1.5mm - adaptors |
| Note: | M20 stopping plugs for unused |
| | entries supplied with all options |
| | | |
| Adaptor/Stopping | B | Brass |
| plug material: [m] | N | Nickel Plated |
| S | Stainless Steel (Standard) |
| | | |
| Guard material: [s] | 1 | A2 304 Stainless Steel |
| 2 | A4 316 Stainless Steel (Standard) |
| | | |
| Enclosure colour: [x] | R | Red (Standard) |
| | | |
| Lens colour: .[y] | .1 | R Red |
| .2 | A Amber (Orange) |
| .3 | Y Yellow |
| .4 | G Green |
| .5 | B Blue |
| .7 | C Clear (Transparent) |
| .8 | M Magenta |
| Example part code: | STExB2 RT1 [u] [e] [m] [s] [x] . [y] |
| STExB2 RT1 024 A S 2 R . 1 |
| | |
| Explanation of tehe above: | |
| Product type: | "STExB2" |
| Type: | "RT1" = Halogen Rotating Beacon |
| Voltage: [u] | "024" = 24vDC |
| Cable Entry: [e] | "A" = 4 x M20x1.5mm |
| Stopping plug: [m] | "S" = Stainless Steel (Standard) |
| Bracket material: [s] | "2" = A4 316 Stainless Steel Guard |
| Enclosure colour: [x] | "R" = Red Enclosure colour |
| Lens colour: .[y] | ."1" = (R) Red Lens colour |
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.15 | 0.51 | 0.86 | 0.49 | 0.12 | 1.00 |
Current Consumption:
| Voltage: | | Current: |
| 12vDC | | 1.73A |
| 24vDC | | 970mA |
| 115vAC | 50/60Hz | 216mA |
| 230vAC | 50/60Hz | 111mA |
