IS-mC1 IS-minialert

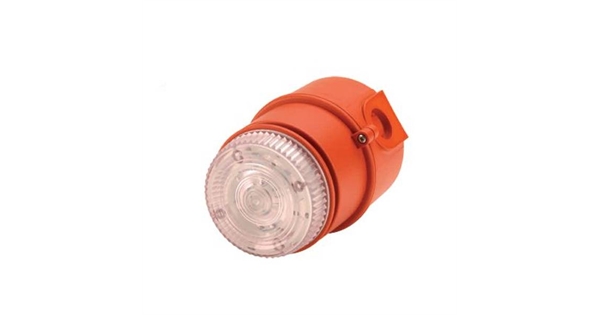

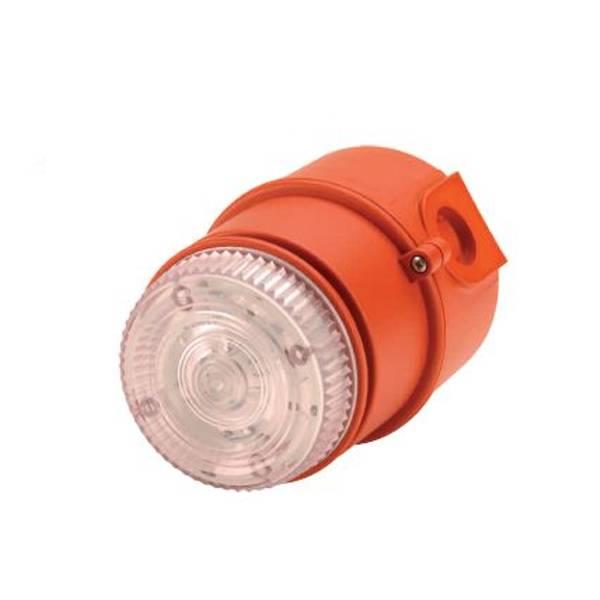

The IS-mC1 is a compact combined 100dB(A) alarm sounder and L.E.D. beacon
- only one Zener barrier or galvanic isolator required to run both sounder & beacon or alternatively the unit can be operated as individual signals.



Approvals include ATEX, IECEx and GOST-R for Zone 0 applications and FM approval for Class I Division 1 and Class I Zone 0 applications.





Features:

• Input overload and reverse current protection
• End of line resistor certified
• Auto synchronised sound output
• Prismatic lens optimises L.E.D effectiveness
• Available with custom tone configurations and frequencies





Approvals:



• ATEX certificate: SIRA05ATEX2084X,EN 60079-0 : 2006, EN 60079-11 : 2007, EN 60079-26 : 2007
• IECEx certificate: IECEx SIR 06.0045X, IEC 60079-0 : 2004, IEC 60079-11 : 2006, IEC 60079-26 : 2006
• FM approved: Class 3600 1998, Class 3610 1999 Class 3810 2005
• GOST-R certificate: POCC GB.JB05.B02205





Part codes:

IS-mC1-R/[x]



ATEX / IECEx / FM
II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
IS Class l, Division 1, Groups A, B, C, D T4
IS Class I, Zone 0, AEx ia IIC T4 Ta = +60°C



GOST-R
0ExiaIICT4 IP65 -40° to +60°C



[x]: Lens colour:
.1/R = Red
.2/A = Amber
.4/G = Green
.5/B = Blue
.7/C = Clear (White LED)



Combined or Sounder only:
May be powered from any certified Zener barrier or galvanic isolator whose output parameters do not exceed :
Uo: 28vdc Io: 93mA Po: 660mW



Beacon only:
May be powered from any certified Zener barrier or galvanic isolator whose output parameters do not exceed :
Uo: 28vdc Io: 660mA Po: 1.2W





Specification:



Alarm sounder:
Nominal output:	100dB(A) @ 1m +/- 3dB - Tone 2*

No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 100dB(A); Min. 90dB(A) - Tone 2
Effective range: 40m @ 1KHz



L.E.D. Beacon:
Light source: Array of 6 high intensity L.E.D’s.
L.E.D. colours: Red, Amber, Blue, Green & Clear
Flash modes: Double flash at 2Hz and 1Hz
Effective intensity cd: 23cd*



General:
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Combined current: approx: 30mA typical when powered from 24v
supply via 28v 300Ohm Zener barrier.
Ingress protection: IP65
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS & PC
Housing colour: RAL3000 Red
Fixings: Stainless Steel
Cable entries: 2 x M20 clearance gland knockouts.
Custom configurations also available.
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C
Storage temp: -40° to +70°C
Relative humidity: 90% at 20°C
