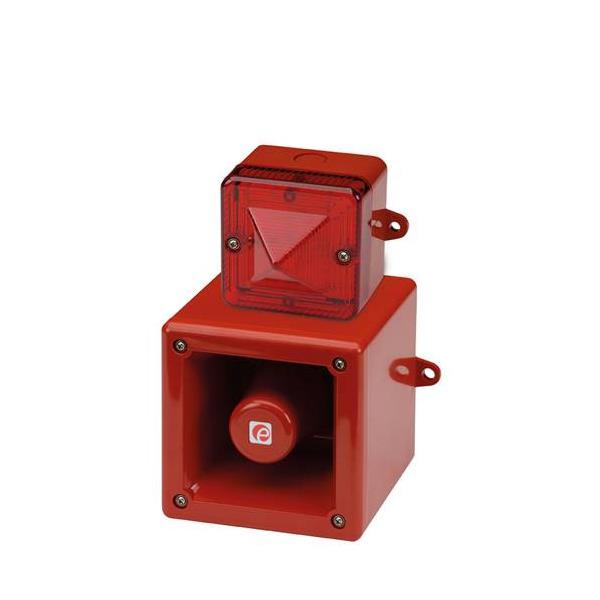

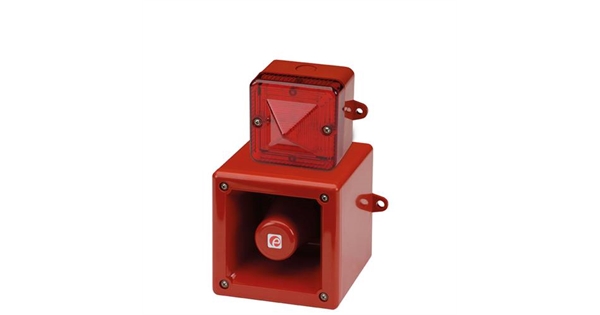

Ex Combi IS-AL105NR/A 16-28vDC AMBER



IS-A105N+IS-L101L Combination

Consist of IS-A105N-R + IS-L101L-R/A + L101L-COMB-KIT



Intrinsically Safe combination L.E.D beacon/light & alarm horn.
The IS-A105N+IS-L101L unit is an intrinsically safe field mounting combined alarm horn with L.E.D. beacon/light which provides a a loud audible and bright flashing visual signal utilising a common zener barrier or galvanic isolator.
The alarm horn features an alarm accept function - by closing a pair of external contacts (i.e push switch) the operator may silence the alarm for set periods between 5 seconds and 2 hours. If after the preset time the alarm condition still exists the sounder will activate again. Certified for use in application requiring Ex ia or Class I Div 1 equipment the IS-A105N+IS-L101L is a globally accepted solution to fire or process control signalling.



Features:
• Input overload and reverse current protection
• Prismatic lens optimises L.E.D effectiveness
• Auto synchronised sound output
• Unit can be mounted using external lugs or internal BESA compatible fixing positions.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Available with custom tone configurations and frequencies.



Specification:

Sounder/horn:
Nominal output: 105dB(A) @ 1m +/- 3dB - Tone 2*
No. of tones: 49 (UKOOA/PFEER compliant)
No. of stages: 3
Volume control: Max. 105dB(A); Min. 96dB(A) - Tone 2
Effective range: 60m @ 1KHz

Beacon/light:
Light source: Array of 6 high intensity L.E.D’s
L.E.D. colours: Red, Amber, Blue & Green
Standalone mode: 2Hz (2 double flashes per second)
Effective candela: 48cd* - measured ref. to I.E.S.
Flash rate: On: 1 Hz (1 double flash per second) Silenced: 2 Hz (2 double flashes per second) (alarm accepted)

General:
Voltage: 16-28vdc via Zener barrier or galvanic isolator
Current: 25mA typical when powered from 24v supply via 28v 300 Ohm Zener barrier
Ingress protection: IP66
Rating: Continuous
Housing material: UL94V0 & 5VA FR ABS
Housing colour: RAL3000 Red
Fixings: Stainless Steel
Cable entries: 2 x M20 clearance gland knockouts. Custom configurations also available.
Terminals: 0.5 to 2.5mm²
Operating temp: -40° to +60°C
Storage temp: -40° to +70°C
Relative humidity: 90% at 20°C
Weight : 1.15kg

*SPL data +/-3dB(A). Measured at optimum voltage.
*All candela data is representative of performance with amber lens at optimum voltage.



Part codes:
IS-A105N-R
IS-L101L-R/[x]
ATEX / IECEx / FM
II 1G Ex ia IIC T4 Ga (-40ºC <=Ta<= +60°C)
IS Class I, Zone 0, AEx ia IIC T4 Ta = +60°C
IS Class l, Division 1, Groups A, B, C, D T4
GOST-R
0ExiaIICT4 IP65 -40° to +60°C
[x] : L.E.D. colour R: Red, A: Amber, B: Blue, G: Green
May be powered from any certified Zener barrier or galvanic
isolator whose output parameters do not exceed :
Uo : 28VDC Io : 93mA Po : 1.2W



Approvals:
• ATEX certificate: SIRA 04ATEX2301X,
ATEX certificate: SIRA 04ATEX2302X,
EN 60079-0 : 2006, EN 60079-11 : 2007,
EN 60079-26 : 2007
• IECEx certificate: IECEx SIR 04.0038X,
IECEx certificate: IECEx SIR 04.0039X,
IEC 60079-0 : 2007, IEC 60079-11 : 2006,
IEC 60079-26 : 2006
• FM approved:
Class 3600 1998, Class 3610 1999,
Class 3810 2005, IEC 60529 : 1989
• GOST-R certificate: POCC GB.JB05.B03365
