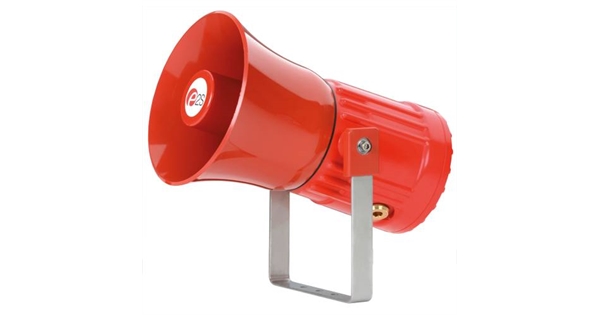

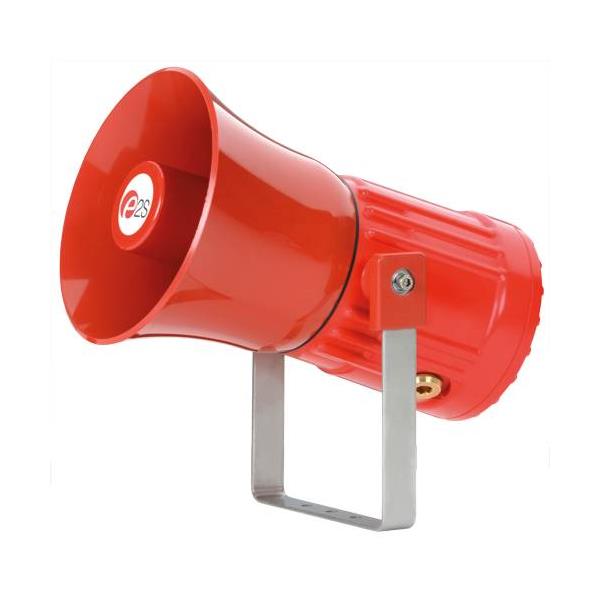

GNExL1 PA Loudspeaker 15W

The flameproof GNExL1 PA loudspeaker is suitable for Zone 1 & Zone 2 applications.



The GNEx range features enclosures manufactured from GRP (glass reinforced polyester), moulded in natural red, but also available in other colours. The re-entrant flare horn is high impact, fire retardant ABS. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Specification:
SPL: 102dB +/-3dB @ 1w @ 1m - Pink
        113dB +/-3dB @ 15w (rated) @ 1m
Rated power: 15 Watts RMS
70v line tappings: 15w / 7.5w / 3w / 1w
100v line tappings: 15w / 7.5w / 3w / 1w
Low impedence: 8 Ohm or 16 Ohm
Dispersion: 120° @ 1kHz & 32° @ 4kHz
Frequency range: 400Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor (Transformer)
                              470µF Capacitor (Low impedance)
Ingress protection: IP66/67
Housing material: GRP
Colour: RAL3000 Red (others available on request)
Horn flare: High impact UL94 V0 & 5VA FR ABS (Red)
Cable entries: Dual M20 ISO
Terminals: 0.5 to 4.0mm² cables.
Weight: 70/100V line: 3.8kg Low imp.: 3.45kg



Part Codes
Code:       Description:
GNExL1  15W PA Loudspeaker
V100:      70/100V line transformer
R008:      8 Ohm low impedance
R016:     16 Ohm low impedance



-N:         No stopping plug (standard)
-B:          Brass stopping plug
-S:          Stainless steel stopping plug
-P:          Nickel plated brass stopping plug



-1:          Mounting bracket 304 stainless steel (A2) (standard)
-2:          Mounting bracket 316 stainless steel (A4)

-A-1:     Approval to ATEX & IECEx (standard)
-R:         Housing colour Red (standard)
-S:         Other housing colour - please specify

Example:
GNExL1V100-B-1-A-1-R
GNExL1 70/100V lne transformer version with brass stopping plug, 304 stainless steel mounting bracket, approved to ATEX & IECEx in a red housing.



Coding
 •II 2G Ex d IIC T4 Ta. -60° to +50°C
 •II 2G Ex d IIC T3 Ta. -60° to +70°C
 •II 2G Ex d IIB T6 Ta. -60° to +50°C
 •II 2G Ex d IIB T5 Ta. -60° to +65°C
 •II 2G Ex d IIB T4 Ta. -60° to +70°C
