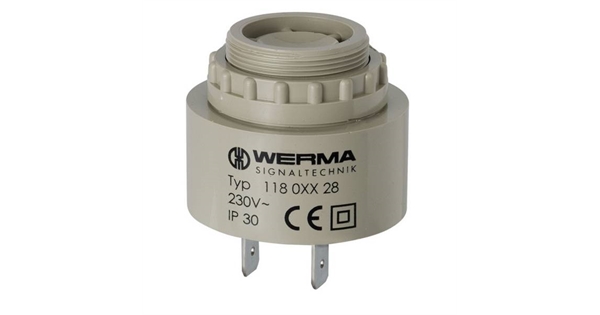

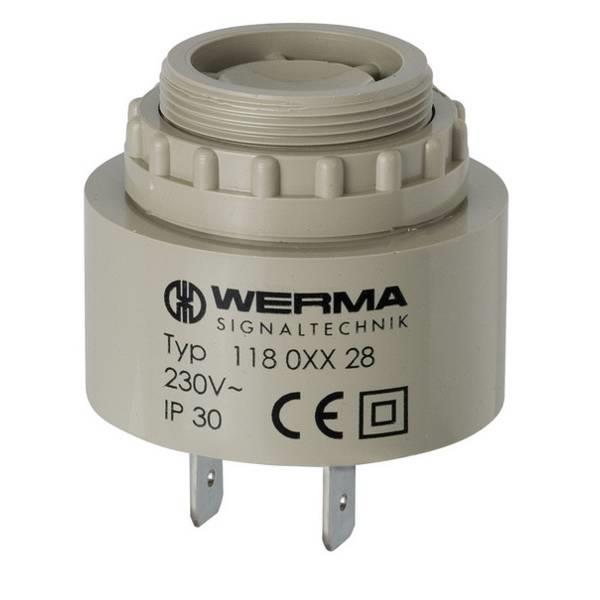

Electronic Installation Buzzer EM Contin/pulse
Order number: 119.068.28
Technical specifications:
Rated voltage: Unenn = see below
Current consumption: less tan/ = 2OmA
Audio frequency: approx. 2400 Hz
Tone type: Continuous or pulse tone
(Pulsating tone with approx. 1Hz)
Duty cycle: 100% ED
Working life: >5000 h
Fixing: Installation mounting
Further specifications:
Housing material: ABSgrey (ABS/PC black on special request)
Terminal: 3 x 6.3 x 0.8 Flat plug (lx joint mass, 1x pulse tone, 1x continuous tone)
Weight: approx. 50 g
Temperature: -20°C until + 60°C
Sound output: 85 dB (A)±10% @1m
Protection Rating: IP30
IP43 with cap (special part)
Regulations: Conform to current EC-regulations.
UL-listed types on request.
Order specifications:
119.068.15 - 24 V (12-30V) AC/DC
119.068.26 - 48 V (30-75V) AC/DC
119.068.27 - 115 V (70-150V) AC/DC
119.068.28 - 230 V (110-240V) AC
(other voltages on special request)
All specifications refer to Unenn and room temperature!
