PA Loadspeaker ML15 15w 16 Ohm
118dB(A) IP66/67
|
|

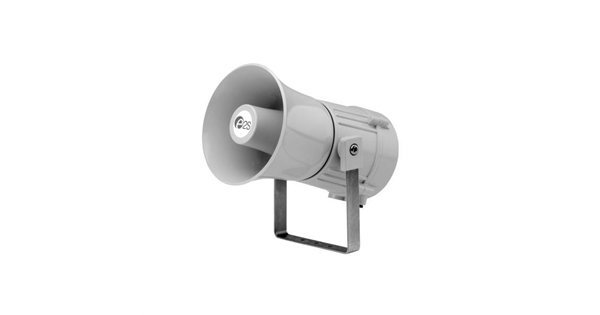

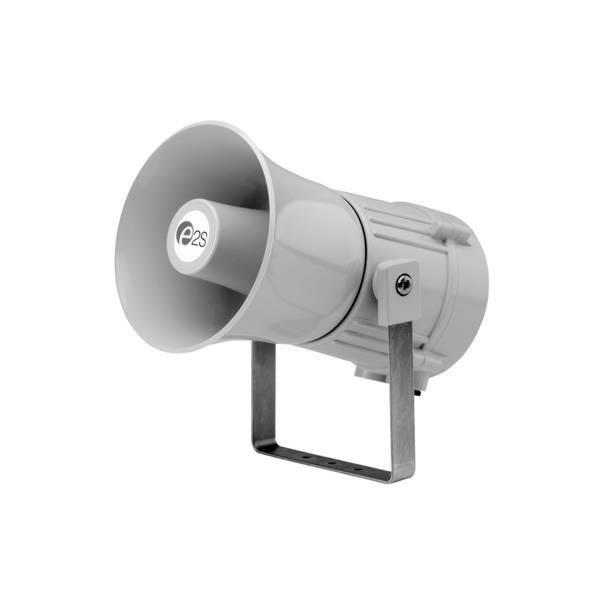

ML15 PA Horn Loudspeaker
The ML15 15W PA loudspeaker features a robust, fire retardant, IP66 & IP67 housing; suitable for harsh environments with high ambient noise levels.
• Continuously rated.
• Large termination area.
• Stainless steel fixings.
• Ratchet adjustable stainless steel ‘U’ bracket for 360° positioning.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalisation available on request.
Approvals:
GOST-R approved. Cert: POCC GB-JB05-H00144
Specification:
| SPL: | 108dB +/-3dB @ 1w @ 1m - Pink noise |
| 118dB +/-3dB @ 15w @ 1m |
| | |
| Rated power: | 15 Watts RMS |
| | |
| 70v line tappings: | 15w / 7.5w / 3w / 1w |
| (z=336.67 Ohms / 653.33 Ohms / |
| 1.6kOhms / 4.9kOhms) |
| | |
| 100v line tappings: | 15w / 7.5w / 3w / 1w |
| (z=666.87 Ohms / 1.34kOhms / |
| 3.34kOhms / 10kOhms) |
| | |
| Low impedence: | 8 Ohm or 16 Ohm |
| | |
| Dispersion: | 120° @ 1kHz & 32° @ 4kHz |
| | |
| Frequency range: | 400Hz to 8000 Hz |
| | |
| DC Line monitoring: | 2.2uF Capacitor (Transformer version) |
| 470uF Capacitor |
| (Low impedance version) |
| | |
| Ingress protection: | IP66 & IP67 (Third party tested) |
| | |
| Housing material: | High impact UL94 V0 & 5VA FR ABS |
| | |
| Colour: | Grey (RAL7038) |
| | |
| Cable entries: | 2 x M20 supplied with 1 blanking plug |
| | |
| Terminals: | 0.5 to 4.0mm² cables. |
| | |
| Operating temp: | -25 to +55°C [-13° to +131°F] |
| | |
| Storage tempe: | -40 to +70°C [-40° to +158°F] |
| | |
| Relative humidity: | 90% at 20°C [68°F] |
| | |
| Weight: | 70/100V line: 2.60kg / 5.72Ibs |
| Low impedance: 2.20kg / 4.84Ibs |
*SPL data +/-3dB(A). Measured at optimum voltage.
Part Codes:
| Version: | Part code: |
| 100V Line: | ML15W100V |
| 70V Line: | ML15W70V |
| 16 Ohm: | ML15W16R |
| 8 Ohm: | ML15W8R |
