LED Beacon E2X BL2 AC230 BN1A1B/C Clear

LED IP64/IP66 IECEx/ATEX Zone2, UL/cULs

Varenr:
E2xBL2AC230BN1A1B/C
E2xBL2AC230BN1A1B/C E2S E2xBL2AC230BN1A1B/C LED Beacon E2X BL2 AC230 BN1A1B/C Clear LED IP64/IP66 IECEx/ATEX Zone2, UL/cULs
E2xBL2AC230BN1A1B/C E2S E2xBL2AC230BN1A1B/C LED Beacon E2X BL2 AC230 BN1A1B/C Clear LED IP64/IP66 IECEx/ATEX Zone2, UL/cULs
Lenker: | DataSheet

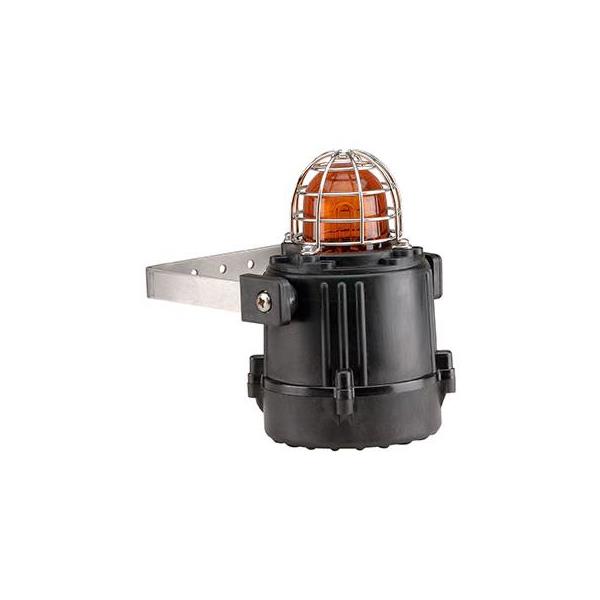

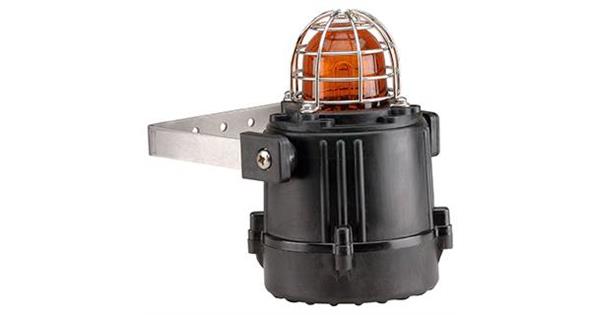

E2xBL2 Multi-function LED Beacon & Status Light


The hazardous location E2xBL2 LED beacon and status light is UL/cULs approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 applications.


The hazardous area E2xBL2 LED status light & beacon utilises an array of high power Cree® LED's, orientated to optimise visibility in any direction. The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a light output of up to 160 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device. The UV stable colour filter enhances the light output and is field replaceable.


Features:

• Very large termination area.
• Ingress protection IP66/67
• Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
• High and low power Steady On modes
• Three remotely selectable stages/channels on DC versions.
• Glass lens & Stainless Steel guard
• UV stable PC field replaceable lens colour filter
• Stainless steel fixings
• Dual cable entries
• Duplicate cable terminations (in & out for daisy-chain installations)
• Ratchet adjustable stainless steel ‘U’ bracket.


Approvals:

  • ATEX certificate: DEMKO 06 ATEX 0421554X

  • IECEx certficate: IECEx ULD 14.0012X

  • UL/cUL File ref: E245313

  •


    Specification:

    Source:Array of 4 x High Power Cree® LED's
    Modes:1Hz flash (60 fpm)
    1.5Hz flash (90 fpm)
    2Hz flash (120 fpm)
    Double strike flash
    Triple strike flash
    High Power Steady
    Low Power Steady
    Eff. Intensity cd:87 cd - High Power Steady
    Eff. Intensity cd:160 cd - 1Hz flash
    Lens colours:Red, Amber, Yellow, Green, Blue, Clear & Magenta
    Voltages DC:24vDC (18-54vDC)
    Voltages AC:115vAC; 230vAC
    Ingress protection:IP rating per EN60079-0: IP64
    IP rating per EN60529: IP66
    Type rating per UL50E/NEMA250: 4/4X/13
    Enclosure matl:UL94V0 PPS & ABS
    Lens material:Borosilicate glass dome with PC prismatic lens cover
    Guard:Stainless Steel dome guard as standard
    Cable entries:Dual M20x1.5 or 1/2"NPT
    Terminals:0.5 - 2.5mm² (20-14 AWG)
    Line monitoring:Blocking diode included
    EOL can be factory fitted
    LED life:60,000 hours
    Operating temp:-20 to +55°C [-4° to +131°F]
    Storage temp:-40 to +70°C [-40° to +158°F]
    Relative humidity:90% at 20°C [68°F]
    Weight: 1.48kg / 3.25Ibs

     * All candela data is representative of performance with clear lens at optimum voltage.


    Part Codes:                      E2x BL2 [u] [e] [m] [s] [v] [x] / [y]


    Version:Ident.:Description:

    Product type:E2x BL2LED Beacon/Status Light

    Voltage: [u]DC02424vDC  (18-54vDC)
    AC115115vAC
    AC230230vAC

    Cable Entry Type: [e]AM20x1.5 & ½” NPT
    BM20x1.5 & M20x1.5 (Standard)
    C½” NPT & ½” NPT

    Adaptor/Stopping
    plug material: [m]NNylon (Standard)

    Guard & Bracket1A2 304 Stainless Steel (Standard)
    material: [s]2A4 316 Stainless Steel

    Product version: [v]A1UL, cULs, IECEx & ATEX
    (Standard)

    Enclosure colour: [x]BBlack (Standard)

    Lens colour: /[y] RRed
    AAmber (Orange)
    YYellow
    GGreen
    BBlue
    CClear (Transparent)
    MMagenta


    Example part code:E2x BL2 [u] [e] [m] [s] [v] [x] / [y]
    E2x BL2 DC024 B N 1 A1 B / R

    Explanation of tehe above:
    Product type:"E2x BL2" LED Beacon/Status Light
    Voltage: [u]"DC024" = 24vDC
    Cable Entry: [e]"B" = M20x1.5 & M20x1.5 (Standard)
    Stopping plug[m]"N" = Nylon (Standard)
    Bracket material: [s]"1" = A2 304 Stainless Steel (Standard)
    Product version: [v]"A1" = UL, cULs, IECEx & ATEX (Standard)
    Enclosure colour: [x]"B" = Black (Standard)
    Lens colour: /[y] "R" = (R) Red Lens colour


    Effective Candela lens colour factor:

    RedAmber Yellow GreenBlueClear
    0.230.700.930.250.241.00


    Current Consumption:


     High Power  Low Power  Flashing
    Version:Voltage:    Steady         Steady        1Hz

    24vDC18-54vDC240mA134mA110mA
    115vAC103.5-126.5vAC 95mA 78mA 90mA
    230vAC207-253vAC 48mA 37mA 45mA


    Also available as the E2xC1X05 combined alarm sounder and Xenon beacon and the E2xC1LD2 combined alarm sounder and LED beacon.


    Coding:

    • ATEX / IECEx certification
      II 3G Ex nA IIC Gc T4 Ta -20°C to +55°C
      II 3D Ex tb IIIC Dc T85°C Ta -20°C to +55°C
    • NEC Class / Zone ratings US
      Class I Zone 2 AEx nA IIC Gc T4 Ta -20°C to +55°C
      AEx tb IIIC Dc T85°C Ta -20°C to +55°C
    • CEC Class / Zone ratings Canada
      Ex nA IIC Gc T4 Ta -20°C to +55°C
      Ex nA IIC Gc T4A Ta -20°C to +40°C
      Ex tb IIIC Dc T85°C Ta -20°C to +55°C
    • NEC & CEC Class / Division Ratings for US / Canada
      Class I, Div 2, ABCD T4A Ta -20°C to +55°C
      Class II, Div 2, FG T6 Ta -20°C to +55°C
      Class III, Div 1&2 Ta -20°C to +55°C

    Multi-function patterns:

    Stage 1:Stage 2:Stage 3:
    [On board][Remote][Remote]

    Steady High Power   Flashing 1HzTriple Strike
    Steady Low PowerFlashing 1HzTriple Strike
    Flashing 1Hz2x Flash 2HzTriple Strike
    Flashing 1.5HzFlashing 2HzDouble Strike
    Flashing 2HzTriple StrikeTriple Strike
    Double StrikeSteady High PowerTriple Strike
    Triple StrikeFlashing 2HzDouble Strike

    Note: Remote second and third stage on DC units only
