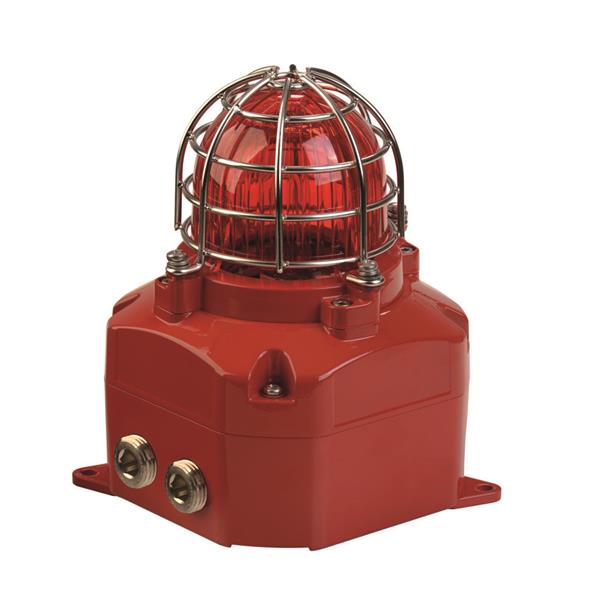

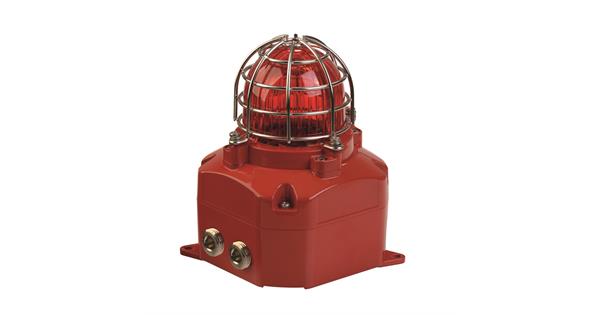

Ex-z2 Xenon Beacon D2xB1X05DC024MB1A1R/Y
5J IP66 Zone 2&22 / UL Globally Approved
Varenr:
D2xB1X05DC024MB1A1RY
|
|
D2xB1X05 Haz Loc Xenon Strobe 5J Warning Light
The D2xB1X05 features a high output 94.78cd, 5 Joule Xenon strobe warning light beacon. Globally approved, the robust Type 4/4X, IP66 enclosure ensures suitability for all haz loc fire alarm and general signalling applications.
Description:
The corrosion proof, marine grade aluminium die cast enclosure is phosphated and powder coated providing resilience in the harshest of hazardous location environments. One device, globally certified: ATEX, IECEx Zone 2 & 22; NEC/CEC CI D2 and CII D2; NEC CI Zone 2 and Zone 22; CEC Zone 2 & 22 and CII D2. UL, cUL & ULC approved 24Vdc version is UL1638, CAN/ULC-S526 compliant for private mode fire alarm use.
Features:
• UL1638 & CAN-ULC-S526 Private mode fire
• UL1638 General signaling
• 22.2 eff. candela – UL1638 Private mode fire
• 94.78 eff. candela – UL1638 general signaling
• Xenon tube mechanically secured against vibration & shock
• User replaceable Xenon tube assembly
• Duplicate cable terminations (in & out for daisy-chain installations)
• Large termination area
• Marine grade aluminium enclosure
• Ingress protection Type 4/4X/3R/13, IP66
• High impact resistant Borisilicate glass lens
• Stainless steel lens guard as standard
• Field replaceable lens colour filter
• Stainless steel external and internal fixings
• Duplicate, pluggable cable terminations
• Conduit mounting via integral 3/4" NPT entry
• Surface mounting via user installed lugs
• Dual 1/2"NPT and dual M20 entries
• Supplied with haz loc rated stopping plugs
• Compact footprint
Approvals:
• UL/cUL File ref: E245313
• IECEx certficate: IECEx ULD 14.0004X
• ATEX certificate: DEMKO 14 ATEX 4786493904X
• CSFM listing: 7300-2279:0500
Coding:
| NEC / CEC: | Class I Div 2 ABCD T2D Ta -40°C to +50°C |
| Class I Div 2 ABCD T3 Ta -40°C to +45°C |
| Class II Div 2 FG T6 Ta -40°C to +50°C |
| Class III Div 1 & 2 Ta -40°C to +50°C |
| NEC: | Class I Zone 2 AEx nA IIC T2 Gc (Ta -40°C to +50°C) |
| Zone 22 AEx tc IIIC 80°C Dc (Ta -40°C to +50°C) |
| CEC: | Class I Zone 2 Ex nA IIC T2 Gc X (Ta -40°C to +50°C) |
| Zone 22 Ex tc IIIC 80°C Dc (Ta -40°C to +50°C) |
| IECEx & ATEX: | II 3G Ex nA IIC T2 Gc (Ta -40°C to +50°C) |
| II 3D Ex tc IIIC 80°C Dc (Ta -40°C to +50°C) |
Specification:
| Energy: | 5 Joules (5Ws) |
| Flash rate: | 1Hz (60 fpm) |
| Peak Candela: | 500,000 cd - calculated from energy (J) |
| Eff. Intensity cd: | 250 cd - calculated from energy (J) |
| Peak Candela: | 33,410 cd - measured ref. to I.E.S. |
| Eff. Intensity cd: | 94.78 cd - measured ref. to I.E.S. |
| Lens colours: | Red, Amber, Yellow, Green, Blue, Clear & Magenta |
| Tube life: | Emissions are reduced to 70% after 8 million flashes |
| Voltages DC: | 24vDC (20-28vDC); 48vDC (42-54vDC) |
| Voltages AC: | 115vAC 50/60Hz; 230vAC 50/60Hz |
| Ingress protection: | EN60529: IP66 |
| UL50E / NEMA250: 4 / 4X / 3R / 13 |
| Enclosure matl: | Marine grade aluminium Al Si12 Cu |
| Colour: | Red (RAL3000), Grey (RAL7038) |
| Lens material: | Borosilicate glass dome with PC prismatic lens cover |
| Guard: | Stainless Steel dome guard as standard |
| Cable entries: | 2 x M20x1.5, 2 × 1/2"NPT, 1 × 3/4"NPT |
| Stopping plugs: | Nickel Plated Brass plugs included |
| Grounding stud: | M5 |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) |
| Line monitoring: | Blocking diode included |
| EOL can be factory fitted |
| Operating temp: | -40 to +50°C [-40° to +122°F] |
| -40 to +70°C [-40° to +158°F] |
| Relative humidity: | 95% at 20°C [68°F] |
| Weight: | DC: 1.5kg/3.31Ibs AC:1.75kg/3.86lbs |
*All candela data is representative of performance with clear lens at optimum voltage.
Part Codes: D2xB1X05 [u] [e] [m] [s] [v] [x] . [y]
| Part Code: | Ident.: | Description: |
| | | |
| Product type: | D2xB1X05 | 5 Joule Xenon Strobe warning |
| | light / beacon |
| | | |
| Voltage: [u] | DC024 | 24vDC |
| DC048 | 48vDC |
| AC115 | 115vAC |
| AC230 | 230vAC |
| | | |
| Cable Entry Type: [e] | A | 2 x ½” NPT, 2 x M20x1.5, |
| | 1 × 3/4"NPT |
| | | |
| Stopping plug | B | Brass (Standard) |
| material: [m] | N | Nickel Plated |
| S | Stainless Steel |
| | | |
| Lens guard matl. | 1 | A2 304 Stainless Steel (Standard) |
| & tag: [s] | 2 | A4 316 Stainless Steel |
| | 3 | A2 304 St/St with Equip. Tag |
| 4 | A4 316 St/St with Equip. Tag |
| | |
| Product version: [v] | A1 | UL, cUL, IECEx & ATEX |
| | | |
| Enclosure colour: [x] | R | Red RAL3000 (Standard) |
| G | Grey RAL7038 |
| | | |
| Lens colour: /[y] | R | Red |
| A | Amber (Orange) |
| Y | Yellow |
| G | Green |
| B | Blue |
| C | Clear (Transparent) |
| M | Magenta |
| | | |
| Accessories: | SP65-0001-A4 | Pole Mount Bracket Kit 2" |
| | St/St A2 (304) |
| SP65-0001-A2 | Pole Mount Bracket Kit 2" |
| | St/St A4 (316) |
| SP65-0002-A2 | Sunshade – St/St A2 (304) |
| SP65-0002-A4 | Sunshade – St/St A4 (316) |
Effective Candela lens colour factor:
| Red | Amber | Yellow | Green | Blue | Clear |
| 0.23 | 0.70 | 0.93 | 0.25 | 0.24 | 1.00 |
| Nominal Voltage: | Voltage Range: | Nominal operating |
| | | current: |
| 24vDC | 20-28vDC | 296mA (In-rush: 1.04A) |
| 48vDC | 48vDC | 145mA |
| 115vAC | 115-120vAC 50/60Hz | 80mA |
| 230vAC | 220-230vAC 50/60Hz | 30mA |
