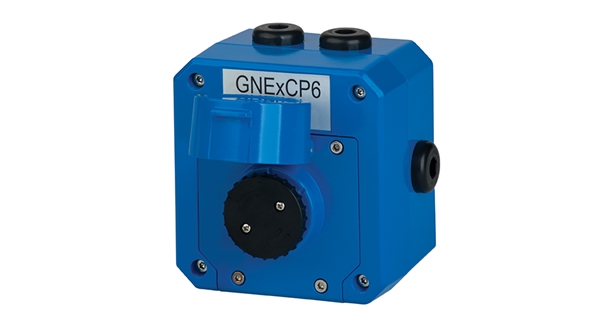

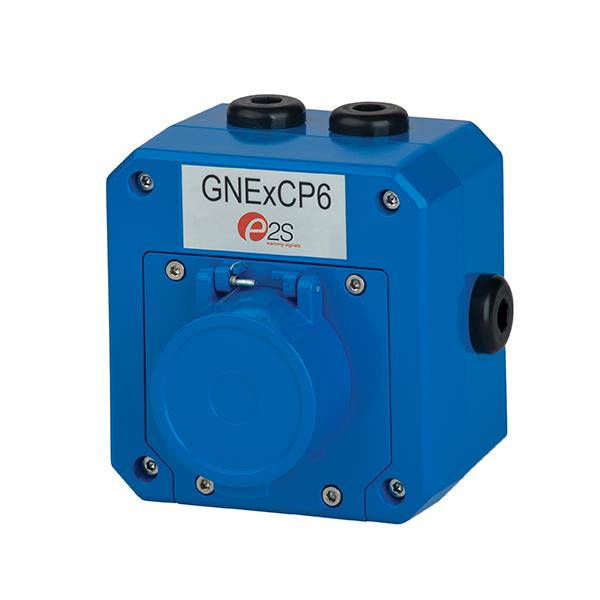

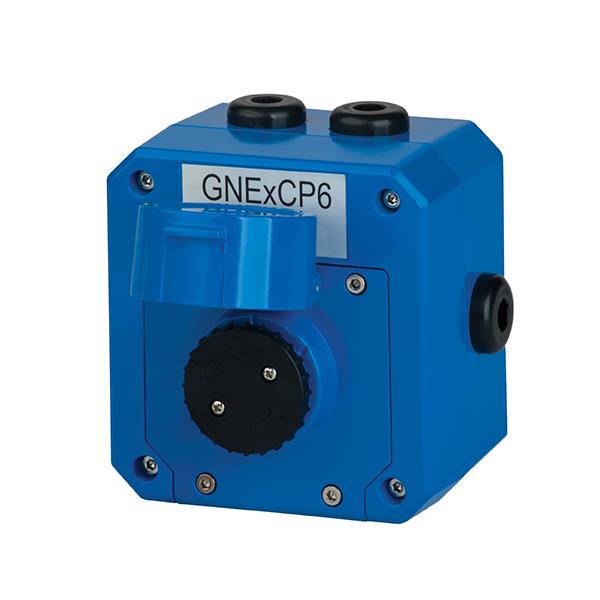

Ex Push Button Call Point GNExCP6B-PB-S-N-D-N-BL-24-E2K7R-LED - BLUE



Part code: GNExCP6B-PB-S-N-D-N-BL-24-E2K7R-LED



Part Codes	Chosen type	Available Options
Type:	GNExCP6B	GNExCP6B
Version:	PB	PB: Push Button
Switch type:	S	S: SPCO  D: DPCO
Stopping Plug type:	N	N: Nylon  B: Brass  S: Stainless Steel
Terminal type:	D	S: Standard  D: DIN Rail
Duty Label:	N	N: Not required  P: Metalisedpolyester (self adhesive)  S: Stainless Steel
Body Colour:	BL	RD: Red  BL: Blue  GN: Green  YW: Yellow  RW: Red/White  YB: Yellow/Black  BK: Black
Nominal Voltage DC:	24	48 / 24 / 12 / 06
EOL Module:	E2K7R	ExxxR: Resistor e.g.470 Ohm = E470R  ED1: Diode IN4007: ED1  ExxxZ: Zener e.g. 5.1V = E5V1Z
Series Module:	LED	SxxxR: Resistor e.g. 2.2K Ohm = S2K2R  ED1: Diode IN4007: ED1  SxxxZ: Zener e.g.12V = S12VZ  L.E.D.: LED



The GNExCP6B manual call points are available as break glass, push button or tool reset versions. They are approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire and gas alarm systems. All types are available with EOL or series resistors, diode or Zener diodes or an L.E.D. indicator and also with either single or double pole change over
switches. All versions are certified to ATEX and IECEx standards.



NB: For applications that do not require monitoring resistors, diodes or inidcator L.E.D.’s please see the GNExCP6A-PB version.



Specification:
GNExCP6B:

II 2G Ex e d mb IIC T4 Gb
II 2D Ex t IIIC T80°C Db
IP66

Ambient: Ta = -40°C to +50°C
Ingress protection: IP66
Housing material: GRP - glass reinforced polyester (UV stable)
Colour: RAL3000 Red (others available on request)
Cable entries: 2 x M20 clearance top and 1 x M20 clearance side. Back box can be rotated to give 2 x bottom and 1 x side entries.
Stopping plugs: 2 x Ex e nylon plugs as standard Brass and stainless steel plugs optional
Terminals: 6 x 4.0mm² / 8 x 2.5mm²

Versions:
The GNExCP6B call point can contain a maximum of two resistor or diode E.O.L. or series modules. The L.E.D. indicator can be combined with one E.O.L. resistor or diode.





Options:
• Alternative housing colours are available to meet specific requirements.
• Single or double pole c/o switch.
• DIN rail mounted terminal blocks: 8 x 2.5mm².
• Metalised polyester or stainless steel “Duty” label.
• Series and/or End of Line resistors, diodes & Zener diodes
• Indicator L.E.D.

Approvals:
• ATEX certificate: Sira 09ATEX3286X, IEC 60079-0:2007 Ed 5, EN 60079-1:2004, EN 60079-7:2007, IEC 60079-18:2009 Ed 3, EN 61241-1:2004
• IECEx certificate: IECEx SIR 09.0121X, IEC 60079-0:2007-10 Edition: 5, IEC 60079-1:2003 Edition: 5, IEC 60079-18:2009 Edition: 3, IEC 60079-7:2006-07 Edition: 4, IEC 61241-1:2004 Edition: 1



P.S: See DataSheet and other documents under Links/Lenker for further details!
