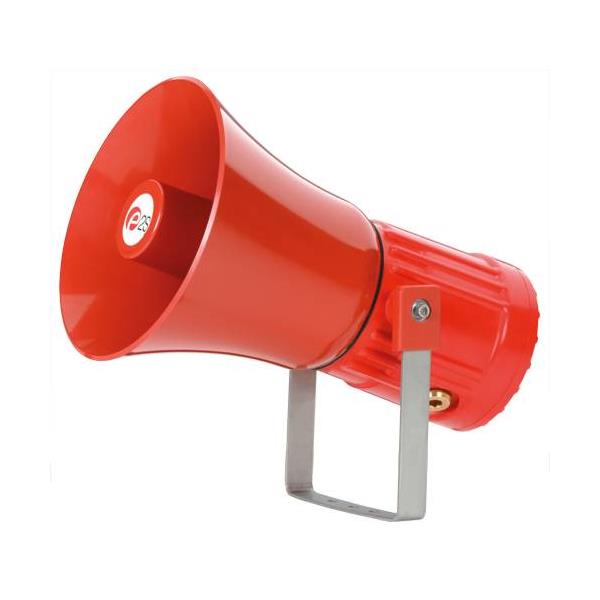

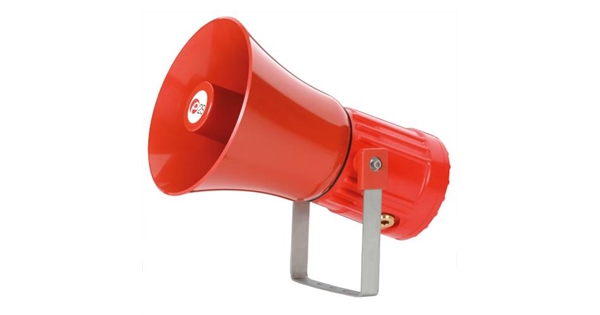

GNExL2 PA Loudspeaker 25W 70/100V line

119dB(A) IP66/67 EExd-IIC-T4 SS304

Varenr:
GNEXL2V100N1A1R
GNEXL2V100N1A1R E2S  GNExL2 PA Loudspeaker 25W 70/100V line 119dB(A) IP66/67 EExd-IIC-T4 SS304
GNEXL2V100N1A1R E2S  GNExL2 PA Loudspeaker 25W 70/100V line 119dB(A) IP66/67 EExd-IIC-T4 SS304

GNExL2 PA Loudspeaker 25W

The flameproof GNExL2 PA loudspeaker is suitable for Zone 1 & Zone 2 applications.

The GNEx range features enclosures manufactured from GRP (glass reinforced polyester), moulded in natural red, but also available in other colours. The re-entrant flare horn is high impact, fire retardant ABS. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Specification:
SPL: 105dB +/-3dB @ 1w @ 1m - Pink
        119dB +/-3dB @ 15w (rated) @ 1m
Rated power: 25 Watts RMS
70v line tappings: 25w / 12.5w / 6w / 2w tappings
100v line tappings: 25w / 12.5w / 6w / 2w tappings
Low impedence: 8 Ohm or 16 Ohm
Dispersion: 130° @ 1kHz & 32° @ 4kHz
Frequency range: 300Hz to 8000 Hz
DC Line monitoring: 2.2µF Capacitor (Transformer)
                              470µF Capacitor (Low impedance)
Ingress protection: IP66/67
Housing material: GRP
Colour: RAL3000 Red (others available on request)
Horn flare: High impact UL94 V0 & 5VA FR ABS (Red)
Cable entries: Dual M20 ISO
Terminals: 0.5 to 4.0mm² cables.
Weight: 70/100V line: 4.3kg Low imp.: 3.95kg

Part Codes
Code:       Description:
GNExL2  25W PA Loudspeaker
V100:      70/100V line transformer
R008:      8 Ohm low impedance
R016:     16 Ohm low impedance

-N:         No stopping plug (standard)
-B:          Brass stopping plug
-S:          Stainless steel stopping plug
-P:          Nickel plated brass stopping plug

-1:          Mounting bracket 304 stainless steel (A2) (standard)
-2:          Mounting bracket 316 stainless steel (A4)

-A-1:     Approval to ATEX & IECEx (standard)
-R:         Housing colour Red (standard)
-S:         Other housing colour - please specify

Example:
GNExL2V100-B-1-A-1-R
GNExL2 70/100V lne transformer version with brass stopping plug, 304 stainless steel mounting bracket, approved to ATEX & IECEx in a red housing.

Coding
 •II 2G Ex d IIC T4 Ta. -60° to +50°C
 •II 2G Ex d IIC T3 Ta. -60° to +65°C
 •II 2G Ex d IIB T6 Ta. -60° to +50°C
 •II 2G Ex d IIB T5 Ta. -60° to +65°C
